OTBD — DOHA INTL

OTBD AD 2.1 AERODROME LOCATION INDICATOR AND NAME

OTBD — DOHA INTL

OTBD AD 2.2 AERODROME GEOGRAPHICAL AND ADMINISTRATIVE DATA

ARP coordinates and site at AD

251539.81N 0513354.34E, Mid - point of RWY, on CL.

Direction and distance from (city)

3.5 NM SE from Doha City Centre

Elevation/Reference temperature

37 FT / 41° C

Geoid undulation at AD ELEV PSN

-98 FT

MAG VAR/Annual change

2.63˚E (FEB~~JUN~~ 2020~~2014~~) / 0.0305˚E

AD Operator, address, telephone, telefax, telex, AFS and website address

AD Operator:

Qatar Company for Airports Operation and Management - MATAR

Address:

Chief Operating Officer
Hamad International Airport
P.O. Box 24730
Doha
State of Qatar

Tel:

(974) 4010 7715 / (974) 4010 3999

Fax:

(974) 4010 1010

Email:

coohiaoffice@hamadairport.com.qa

Website:

www.dohahamadairport.com

SITA:

DOHAOXH

Types of traffic permitted (IFR/VFR)

IFR / VFR

Remarks

Airport Operations Control Centre Duty Manager (AOCC DM) 24/7:

Tel:	(974) 4010 3999

OTBD AD 2.3 OPERATIONAL HOURS

1	AD Operator	H24
2	Customs and immigration	H24
3	Health and sanitation	H24
4	AIS Briefing Office	H24
5	ATS Reporting Office (ARO)	H24
6	MET Briefing Office	H24
7	ATS	H24
8	Fuelling	On prior notification to fuel provider. See Item 10 of GEN 1.1
9	Handling	On prior notification to ground handler. See Item 9 of GEN1.1
10	Security	H24
11	De-icing	Not required due to local climate
12	Remarks	NIL

OTBD AD 2.4 HANDLING SERVICES AND FACILITIES

1	Cargo-handling facilities	Available. (Qatar Aviation Services)
2	Fuel/oil types	Fuel: Jet A1 AVGAS 100 available only at Qatar Aeronautical College (QAC). Oil: NIL.
3	Fuelling facilities/capacity	On prior notification. See Item 10 of GEN 1.1
4	De-icing facilities	Not required due to local climate.
5	Hangar space for visiting aircraft	NIL
6	Repair facilities for visiting aircraft	Contact QAS, see Item 9 of GEN 1.1
7	Remarks	For handling facilities / services contact QAS, see Item 9 of GEN1.1

OTBD AD 2.5 PASSENGER FACILITIES

1	Hotels	Hotel accommodation available in Doha City.
2	Restaurants	NIL
3	Transportation	NIL
4	Medical facilities	Full medical facilities available in Doha
5	Bank and Post Office	NIL
6	Tourist Office	NIL
7	Remarks	NIL

OTBD AD 2.6 RESCUE AND FIRE FIGHTING SERVICES

1	AD category for fire fighting	CAT 9 with CAT 10 available on request. Notification time to upgrade to CAT 10 will require a period of APRX 45 MIN.
2	Rescue equipment	As per ICAO Annex 14 and QCAR - ADR - Aerodrome Design, Operations and Licensing
3	Capability for removal of disabled aircraft	All aircraft types, Contact (974) 4018 4500 / 4018 4977
4	Remarks	Communication with aircraft on ground available on 121.6 MHz

OTBD AD 2.7 SEASONAL AVAILABILITY - CLEARING

1	Types of clearing equipment	NIL
2	Clearance priorities	N/A
3	Remarks	Local climate precludes the requirement. Aerodrome is available in all seasons.

OTBD AD 2.8 APRONS, TAXIWAYS AND CHECK LOCATIONS/POSITIONS DATA

1	Designation, surface and strength of aprons	MAIN APRON: concrete, PCN 70 / R / A / X / T VVIP APRON : concrete, PCN 70 / R / A / X / T WESTERN APRON: asphalt, PCN 70 / F/ A / X / U EASTERN APRON (1): concrete, PCN 70 / R / B / W / U EASTERN APRON (2): concrete, PCN 68 / R / B / W / T EASTERN APRON (3): concrete, PCN 70 / R / B / W / U EASTERN APRON (4): concrete, PCN 79 / R / A / W / T EASTERN APRON EXTENSION: concrete, PCN 63 / R / A / X / T RIZON APRON: asphalt, PCN 40 / F / B / X / U
2	Designation, width, surface and strength of taxiways	TWY A: 34 M, asphalt, PCN 60 / F / A / X / T TWY C: 23 M, asphalt, PCN 60 / F / A / X / T TWY D: 23 M, asphalt, PCN 60 / F / A / X / T TWY F: 26 M, asphalt, PCN 60 / F / A / X / T TWY P: 33 M, asphalt, PCN 70 / F / A / X / T TWY B, TWY E1, TWY E2, TWY G: 29 M, asphalt, PCN 60 / F / A / X / T TWY B1, TWY C1, TWY D1, TWY D3, TWY D4: 29 M, asphalt, PCN 70 / F / A / X / U TWY D2, TWY D2 EAST, TWY Z: 23 M, asphalt, PCN 72 / F / B / W / T TWY D2C: 18 M, asphalt, PCN 46 / F / B / W / U TWY U: 18 M, asphalt, PCN 40 / F / B / X / U TWY H, TWY J, TWY K, TWY L, TWY M, TWY N, TWY Q, TWY R, TWY S, TWY T, TWY Y: 23 M, asphalt, PCN 60 / F / A / X / T
3	Altimeter checkpoint location and elevation	VVIP APRON – 36 FT MAIN APRON – 23 FT WESTERN APRON – 30 FT EASTERN APRON (1) – 29 FT EASTERN APRON (2) – 21 FT EASTERN APRON (3) – 18 FT EASTERN APRON (4) – 16 FT
4	VOR checkpoints	N/A
5	INS checkpoints	See ACFT PARKING / DOCKING CHART
6	Remarks	ACFT Stands E1 to E10 and E12 to E17 (including MARS Stands) restricted to daytime operations only.

OTBD AD 2.9 SURFACE MOVEMENT GUIDANCE AND CONTROL SYSTEM AND MARKINGS

1	Use of aircraft stand ID signs, TWY guide lines and visual docking/parking guidance system at aircraft stands	Aircraft Stand ID Signs and Visual Docking Guidance System (VDGS) are not available in all MARS Stands at Eastern Apron 1, 2, 3, Main Apron, VVIP Apron, Stands A1N, C1 to C9, G1, G2, G2P, G3, G4, E1 to E10, E12, E25 to E31. Parking with Follow Me vehicle only. Aircraft Stand ID Signs and Visual Docking Guidance System (VDGS) are operationally available at Stands A1 to A6, A9 to A18, E11, E13 to E24, E32 to E37, W6 and W7 Taxiing guidance signs at all intersections with TWY and RWY at all holding positions For information on Visual Docking Guidance System (VDGS) see OTBD AD 2.23.1 Visual Docking Guidance System
2	RWY and TWY markings	RWY: designation, THR, displaced landing THR, TDZ, CL, edge, RWY end as appropriately marked TWY: Edge, CL, holding positions at all TWY / RWY intersections marked
3	Stop bars	Stop bars at all RWY entrances and where appropriate except for TWY Q, TWY R and TWY S.
4	Remarks	TWY D2C: Taxiing to/from stands will be via follow-me vehicle.

OTBD AD 2.10 AERODROME OBSTACLES

1 Obstacles in Area 2

1.1 Obstacles in Area 2 are available in electronic format. Refer to GEN 3.1.6 Electronic terrain and obstacle data.

2 Obstacles in Area 3

2.1 Obstacles in Area 3 are available in electronic format. Refer to GEN 3.1.6 Electronic terrain and obstacle data.

OTBD AD 2.11 METEOROLOGICAL INFORMATION PROVIDED

1	Associated MET Office	DOHA MET OFFICE
2	Hours of service	H24
2	MET Office outside hours	NIL
3	Office responsible for TAF preparation	DOHA MET OFFICE
3	Periods of validity	24 HR
4	Type forecast	TREND
4	Interval of issuance	½ HR
5	Briefing/consultation provided	Personal consultation, partial self briefing, telephone to forecaster
6	Flight documentation	Charts, abbreviated plain language text
6	Language(s) used	English
7	Charts and other information available for briefing or consultation	S, U25, P25, (other levels on request), T, SWH (East & West), SWM (MID), TB (Gulf sector winds)
8	Supplementary equipment available for providing information	Telefax
9	ATS units provided with information	DOHA TOWER, DOHA APPROACH
10	Additional information (limitation of service, etc.)	NIL

OTBD AD 2.12 RUNWAY PHYSICAL CHARACTERISTICS

Designations RWY NR	TRUE BRG	Dimensions of RWY (M)	Strength (PCN) and surface of RWY and SWY	THR coordinates, RWY end coordinates, THR geoid undulation	THR elevation and highest elevation of TDZ of precision APP RWY
1	2	3	4	5	6
15	158.15˚	4 570 x 46	60 / F / A / X / T asphalt	251626.13N 0513333.92E 251430.88N 0513424.73E -98.23 FT	THR 34.75 FT TDZ 34.75 FT
33	338.16˚	4 570 x 46	60 / F / A / X / T asphalt	251430.88N 0513424.73E 251648.74N 0513323.95E -98.43 FT	THR 26.96 FT TDZ 27.32 FT

RWY NR	Slope of RWY- SWY		SWY dimensions (M)	CWY dimensions (M)	Strip dimensions (M)	RESA dimensions (M)	Location and Arresting System	OFZ	Remarks
RWY NR	RWY	SWY	SWY dimensions (M)	CWY dimensions (M)	Strip dimensions (M)	RESA dimensions (M)	Location and Arresting System	OFZ	Remarks
1	7		8	9	10	11	12	13	14
15	0.11% first 1 524 M then 0.62% next 762 M then 0.00% next 914 M then 0.48% next 427 M then 0.15% next 945 M	NIL	NIL	274 x 150	4 690 x 300	240 x 90	NIL	Yes	Non load bearing shoulders 15 M
33	0.15% first 945 M then 0.48% next 427 M then 0.00% next 914 M then 0.62% next 762 M then 0.11% next 1 524 M	NIL	NIL	183 x 150	4 690 x 300	240 x 90	NIL	Yes	Non load bearing shoulders 15 M

OTBD AD 2.13 DECLARED DISTANCES

RWY Designator	Intersection Departures	TORA (M)	TODA (M)	ASDA (M)	LDA (M)	Remarks
1	2	3	4	5	6	7
15	Not applicable	4 570	4 844	4 570	3 820	Threshold Displacement 750 M
	TWY A	3 821	4 095	3 821	Not applicable	NIL
	TWY B	3 058	3 332	3 058	Not applicable
	TWY B1	3 058	3 332	3 058	Not applicable
	TWY C1	2 516	2 790	2 516	Not applicable
	TWY C	2 490	2 764	2 490	Not applicable
	TWY P	2 451	2 725	2 451	Not applicable
	TWY E1	1 144	1 418	1 144	Not applicable
	TWY N	1 144	1 418	1 144	Not applicable
	TWY E2	706	980	706	Not applicable
	TWY M	706	980	706	Not applicable
33	Not applicable	4 570	4 753	4 570	4 570	NIL
	TWY F	4 126	4 309	4 126	Not applicable
	TWY L	4 126	4 309	4 126	Not applicable
	TWY K	4 024	4 207	4 024	Not applicable
	TWY E2	3 890	4 073	3 890	Not applicable
	TWY M	3 890	4 073	3 890	Not applicable
	TWY E1	3 450	3 633	3 450	Not applicable
	TWY N	3 450	3 633	3 450	Not applicable
	LOOP	2 482	2 665	2 482	Not applicable
	TWY C	2 145	2 328	2 145	Not applicable
	TWY P	2 145	2 328	2 145	Not applicable
	TWY B	1 542	1 725	1 542	Not applicable
	TWY B1	1 542	1 725	1 542	Not applicable
Note: Intersection departures are allowed subject to the following: a. Initiated by pilot and approved by ATC, subject to traffic. b. ATC is able to keep aircraft visual at all times

OTBD AD 2.14 APPROACH AND RUNWAY LIGHTING

RWY Designator	APCH LGT type, LEN, INTST	THR LGT, colour, WBAR	VASIS (MEHT) PAPI	TDZ LGT LEN	RWY Centre Line LGT Length, spacing, colour, INTST
1	2	3	4	5	6
15	ICAO CAT I precision approach lighting system 900 M LIH	Green supplemented by green WBAR	PAPI 3.5˚ (67.3 FT)	NIL	Length: 4 570 M Spacing: 30 M Colour: fm 0 M to last 900 M White, last 900 M to last 300 M Red / White, last 300 M Red INTST: LIH
33	ICAO CAT II and III precision approach lighting system 900 M LIH	Green supplemented by green WBAR	PAPI 3˚ (69.2 FT)	900 M	Length: 4 570 M Spacing: 30 M Colour: fm 0 M to last 900 M White, last 900 M to last 300 M Red / White, last 300 M Red INTST: LIH

RWY Designator	RWY edge LGT LEN, spacing, colour, INTST	RWY End LGT colour, WBAR	SWY LGT LEN, colour	Remarks
1	7	8	9	10
15	Length: 4 570 M Spacing: 60 M Colour: fm 0 M to first 750 M Red, 750 M to last 600 M White, last 600 M Amber INTST: LIH	Red NIL	NIL	On full length departures, the first 750 M of edge lights are Red due to DTHR
33	Length: 4 570 M Spacing: 60 M Colour: fm 0 M to last 600 M White, last 600 M Amber INTST: LIH	Red NIL	NIL	NIL

OTBD AD 2.15 OTHER LIGHTING, SECONDARY POWER SUPPLY

1	ABN /IBN location, characteristics and hours of operation	ABN: NIL IBN: NIL
2	LDI location and LGT	LDI: NIL
2	Anemometer location and LGT	Located at 251532.34N 0513352.83E (APRX 124 M West of RCL and 58 M East of TWY D CL, ABM mid RWY turning pad); Lighted.
3	TWY edge and centre line lighting	Edge: All taxiway edge-Blue. Centre line: Green.
4	Secondary power supply/switch-over time	Secondary power for CAT I / II / III Ops - on UPS immediate power and with battery backup for up to 30 minutes. Backup generator also available. Other lightings on backup generator. Switch-over time: Switch over time within 15 seconds. Stand - by generator on test 0530 - 0630 every WED.
5	Remarks	NIL

OTBD AD 2.16 HELICOPTER LANDING AREA

1	Coordinates TLOF or THR of FATO Geoid undulation.	NIL
2	TLOF and/or FATO elevation M/FT	NIL
3	TLOF and FATO area dimensions, surface, strength, marking	NIL
4	True BRG of FATO	NIL
5	Declared distance available	NIL
6	APP and FATO lighting	NIL
7	Remarks	As directed by ATC

OTBD AD 2.17 ATS AIRSPACE

1	Designation and lateral limits	DOHA CTR: 253406.92N 0513740.03E - 253023.30N 0513919.31E then clockwise 20NM arc centred on 251020.20N 0513837.80E to 252814.44N 0514835.25E - 251255.01N 0515518.56E then clockwise 20NM arc centred on 251939.10N 0513431.60E to 250143.37N 0512438.00E - 245951.00N 0511930.00E - 250205.26N 0511830.70E then clockwise 5NM arc centred on 250705.86N 0511846.46E to 251032.49N 0511446.09E - 251510.00N 0511243.00E - 251703.32N 0511750.86E then clockwise 20NM arc centred on 251020.20N 0513837.80E to 252424.58N 0512254.19E - 252807.93N 0512115.03E then clockwise 20NM arc centred on 251403.80N 0513659.40E to 253406.92N 0513740.03E.
2	Vertical limits	SFC to 2 500 FT
3	Airspace classification	D
4	ATS unit call sign Language(s)	DOHA Tower English
5	Transition altitude	13 000 FT
6	Hours of applicability	H24
7	Remarks	NIL

OTBD AD 2.18 ATS COMMUNICATION FACILITIES

Service designation	Call sign	Frequencies allocation (MHz)	Logon address	Hours of operation	Remarks
1	2	3	4	5	6
APP	Doha Radar	121.100	N/A	H24	Primary
	Doha Approach	119.725	N/A	H24	Primary (See Note 1)
	Doha Approach	120.600	N/A	H24	Secondary
	Doha Director	119.400	N/A	H24	Primary
	Doha Director	121.125	N/A	H24	Secondary
	-	121.500	N/A	H24	Emergency
	-	243.000	N/A	H24	Emergency
TWR	Doha Tower	118.900	N/A	H24	Primary
	-	119.025	N/A	H24	Secondary
	-	121.500	N/A	H24	Emergency
	-	243.000	N/A	H24	Emergency
GMC Vehicle	Doha Ground	121.800	N/A	H24	Vehicles only
GMC	Doha Ground	121.925	N/A	Daily 0400 - 2200 during peak traffic conditions or may be changed according to ATC requirements	All TFC DEP OTBD for push back, start - up & taxi clearance
D-ATIS	Doha Terminal Information	126.450	DOHAAYA	H24	Data Link Service available. ATIS broadcast can also be obtained via hotline: (974) 44656213
DCL	N/A	N/A	DOHCAYA	H24	Data Link Service for departure clearance
Note 1 - All departing aircraft when airborne, contact "Doha Approach" on 119.725 MHz unless otherwise instructed.

OTBD AD 2.19 RADIO NAVIGATION AND LANDING AIDS

Type of Aid, MAG VAR, Type of supported OPS (for VOR/ILS/MLS, give declination)	IDENT	Frequency	Hours of operation	Position of transmitting antenna coordinates	Elevation of DME transmitting antenna	Remarks
1	2	3	4	5	6	7
DVOR (2.63˚E/2020~~2014~~)	DIA	112.400 MHz	H24	251402.23N 0513437.36E		NIL
DME	DIA	CH 71X	H24	251402.30N 0513437.84E	44.82 FT	Co-located with ‘DIA’ DVOR
LOC RWY 33 ILS CAT III	IBD	109.500 MHz	H24	251657.65N 0513320.01E		336˚ MAG 2.63 NM fm THR RWY 33, ELEV 40.39 FT
GP RWY 33		332.600 MHz	H24	251442.20N 0513424.44E		GP Angle 3˚ RDH 52 FT
ILS DME RWY 33	IBD	CH 32X	H24	251442.22N 0513424.48E	47.40 FT	Co - located with GP, DIST zero TDZ
MM RWY 33		75 MHz	H24	251358.46N 0513439.02E		156˚ MAG 0.58 NM fm THR RWY 33
LOC RWY 15 ILS CAT I	AMD	108.500 MHz	H24	251419.23N 0513429.87E		LOC RWY 15 not usable below 3 000 FT beyond 10 DME from ‘AMD’
GP RWY 15		329.900 MHz	H24	251617.94N 0513342.11E		GP Angle 3.5˚ RDH 60 FT
ILS DME RWY 15	AMD	CH 22X	H24	251617.95N 0513342.17E	90.52 FT	Co - located with GP, DIST zero TDZ. DME ‘AMD’ not usable below 3 000 FT beyond 10 DME.
L	WK	323 KHz	H24	251053.05N 0513600.23E		156˚ MAG 3.90 NM fm THR RWY 33

OTBD AD 2.20 LOCAL AERODROME REGULATIONS

1 Airport regulations

General

Flight over Doha City prohibited below 2 000 FT unless authorized by ATC.
Flight over QEAF Airbase below 1 500 FT prohibited at all times.
Voluntary reporting of any defect, fault, safety hazard, safety accident, serious incidents and occurrence should be reported to the aerodrome operator on the following email: safetyreports@hamadairport.com.qa

2 Taxiing to and from stands

2.1 Aircraft are restricted to push back from nose in parking stands. Exemptions will be granted to certain aircraft by the AD operator.

2.2 On taxiway D between parking stand A18 and taxiway E1, pilots of Code F aircraft need to exercise caution due to obstacle on the shoulder of taxiway D. Obstacle is marked and lit.

3 Parking area for small aircraft (General aviation)

General aviation aircraft shall be guided by marshallers to the parking area (Stands C1-C9) for small aircraft.

4 Parking area for helicopters

(To be developed).

5 Apron — taxiing during winter conditions

Not applicable.

6 Taxiing — limitations

Insufficient safety distances restrict large aircraft’s use of certain taxiways when using their own power. Further information will be given to each aircraft from the TWR or GMC.

7 School and training flights — technical test flights — use of runways

Training flights permitted.

8 Helicopter traffic — limitation

(To be developed).

9 Removal of disabled aircraft from runways

When an aircraft is wrecked on a runway, it is the duty of the owner or user of such aircraft to have it removed as soon as possible. If a wrecked aircraft is not removed from the runway as quickly as possible by the owner or user, the aircraft will be removed by the aerodrome authority at the owner’s or user’s expense.

OTBD AD 2.21 NOISE ABATEMENT PROCEDURES

NIL

OTBD AD 2.22 FLIGHT PROCEDURES

1 Special procedures applicable to ILS category II / III operations at DOHA INTERNATIONAL

1.1 General

1.1.1 ILS Category II / III approach facilities are available at DOHA INTERNATIONAL airport as follows:

OTBD: RWY 33, CAT II or CAT III

1.1.2 Current information concerning surface wind and RVR is immediately available from ATC and significant changes will be reported in accordance with the provisions of PANS-ATM (DOC 4444).

1.1.3 Any Changes in the operational status expected to last more than one hour will be promulgated by NOTAM and pilots will be advised accordingly by ATIS or on initial contact with ATC.

1.2 Authorization

Operators will be permitted to execute CAT II / III approaches and landings if they are legally authorized by their own state of registration to do so, and after having conveyed a copy of their relevant certification papers to the:

Post:

President
Civil Aviation Authority
P.O. Box 3000
Doha
State of Qatar

And obtaining endorsement of acceptance there from.

2 Low visibility procedures (LVP)

2.1 As authorized by QCAA, Low Visibility Procedures (LVP) will be instituted at DOHA INTERNATIONAL airport whenever the official meteorological visibility condition is 1 500 M or less, or whenever the cloud base is 1 000 FT or less, or whenever conditions are such that all of the manoeuvring area cannot be seen from the control tower.

2.2 The procedures will ensure protection of the ILS localizer and glidepath signals to ILS CAT III limits, provide an effective surface movement guidance and control system, and ensure a safe ground environment for aircraft and vehicles.

2.3 LVP will not normally be introduced for aircraft carrying out practice CAT II or CAT III approaches although a request may be made to ATC for ILS signal protection.

3 Procedures to be observed by VFR aircraft in and out of Doha Control Zone

3.1 Aircraft operating under Visual Flight Rules (VFR) to report control zone boundary outbound at nearest visual reporting point to their desired tracks.

3.2 Visual reporting points

3.2.1 Reporting points for Civil Rotary Wing aircraft:

BANANA EAST (BNE)	251850.49N 0514140.25E
BAY-POINT (BAY)	251923.40N 0513802.40E
CABLE (CAB)	252922.58N 0512709.46E
CENTRAL ROUNDABOUT (CRA)	251531.20N 0513503.57E
HAB (HAB)	252554.00N, 0514112.60E
LANDMARK (LMK)	251954.21N 0512751.49E
MARRIOT (MRT)	251800.58N 0513357.07E
NORTH ROUNDABOUT (NRA)	251623.55N 0513438.06E
OUTER CHANNEL MARKER (OCM)	251602.64N 0514418.28E
ROMEO (RME)	251619.73N 0513049.22E
SARAH (SRH)	252653.28N 0512435.68E
SEA-POINT (SEA)	251600.00N 0513925.80E
SOUTH ROUNDABOUT (SRA)	251423.05N 0513528.92E
SOUTH POINT 1 (SP1)	250546.19N 0513600.94E
SOUTH POINT 2 (SP2)	251245.63N 0515515.32E
SPOON (SPN)	253319.71N 0513801.01E
X-RAY (XRY)	251344.29N 0513120.70E
ZULU (ZUL)	251255.01N 0512700.43E

3.2.2 Reporting points for Civil Fixed Wing aircraft:

ALPHA (ALF)	252344.84N 0512204.72E
ASPIRE (ASP)	251544.78N 0512641.36E
BRAVO (BVO)	253201.18N 0511823.86E
ROMEO (RME)	251619.73N 0513049.22E
SHAMAL (SML)	253716.55N 0512405.05E
SOFIA (SOF)	252425.00N 0512254.00E
SOUTH POINT (SPT)	245917.99N 0513111.90E
X-RAY (XRY)	251344.29N 0513120.70E
ZULU (ZUL)	251255.01N 0512700.43E

3.3 Aircraft returning from general flying training areas shall request joining instructions prior to leaving these areas.

3.4 All aircraft must maintain listening watch on 118.900 MHz whilst operating within the control zone with an operations normal call every 30 minutes.

3.5 Standard VFR departure and arrival routes for Rotary Wing Aircraft.

3.5.1 Aircraft departing from Doha International Airport

3.5.1.1 The following routes are available 24/7.

	Runway	Name	Description
Note: The HELI SOUTH ROUTE is restricted to periods when the visibility is 5000 M or greater. Below 5000 M the HELI SOUTH route is not available except for Gulf Helicopters which can operate VFR down to 3500 M visibility.
a)	RWY 15	HELI SPOON 15 Departure	After departure RWY 15, turn right to X-RAY (XRY) and climb to 1500 FT. From XRY, route direct LANDMARK (LMK), then SARAH (SRH), CABLE (CAB) and SPOON (SPN). After SPN, aircraft will be routed as requested.
b)	RWY 33	HELI SPOON 33 Departure	After departure RWY 33 turn left route ROMEO (RME) and climb to 1500 FT. From RME, route direct LANDMARK (LMK), then SARAH (SRH), CABLE (CAB) and SPOON (SPN). After SPN, aircraft will be routed as requested.
c)	RWY 33	HELI SOUTH 33 Departure	After departure RWY 33 turn left towards X-RAY (XRY) climbing to altitude 1500 FT. From XRY helicopters route direct SOUTH POINT 1 (SP1). Aircraft to monitor Hamad TWR East Frequency 118.525 MHz until reaching SOUTH POINT 2 (SP2).

3.5.1.2 The following routes are subject to ATC approval.

	Runway	Name	Description
Note: From BNE, the following outbound procedures will apply: Aircraft operating on DOH VOR R360 to R019 will route via HAB and then on their requested radials. Aircraft operating East of DOH VOR R019 will route as requested. Aircraft routing to Eastern oil fields will route as requested.
a)	RWY 15	BAY-POINT (BAY) Departure	After departure RWY 15, turn left towards CENTRAL ROUNDABOUT (CRA) and climb to 1000 FT to cross CRA at 1000 FT, contact Hamad TWR West (TW) once clear of RWY. From CRA route to MARRIOT (MRT) and Hold, whilst awaiting clearance from ATC. When cleared, cross North of threshold RWY 16R/RWY 16L and route towards BAY-POINT (BAY) and BANANA EAST (BNE). (See note below) Note: The aircraft should not, in normal circumstances, leave MRT until TW has effected coordination with Tower East (TE) and all Traffic Information (TI) passed i.e. RWY 16R/RWY 16L traffic, helicopter arrivals etc.
b)	RWY 33	SEA-POINT (SEA) Departure	After departure RWY 33 turn right towards CENTRAL ROUNDABOUT (CRA) and climb to 1000 FT to cross CRA at 1000 FT, contact Hamad Tower West (TW) once clear of RWY. From CRA route to SOUTH ROUNDABOUT (SRA) and Hold, whilst awaiting clearance from ATC. When cleared, cross south of threshold RWY 34L/RWY 34R and route towards SEA-POINT (SEA) and BANANA EAST (BNE). (See note below). Note: The aircraft should not, in normal circumstances, leave SRA until TW has effected coordination with Tower East (TE) and all Traffic Information (TI) passed i.e. RWY 34L/RWY 34R traffic, helicopter arrivals etc.

Runway

Name

Description

Note: From BNE, the following outbound procedures will apply:

Aircraft operating on DOH VOR R360 to R019 will route via HAB and then on their requested radials.
Aircraft operating East of DOH VOR R019 will route as requested.
Aircraft routing to Eastern oil fields will route as requested.

RWY 15

BAY-POINT (BAY) Departure

After departure RWY 15, turn left towards CENTRAL ROUNDABOUT (CRA) and climb to 1000 FT to cross CRA at 1000 FT, contact Hamad TWR West (TW) once clear of RWY. From CRA route to MARRIOT (MRT) and Hold, whilst awaiting clearance from ATC. When cleared, cross North of threshold RWY 16R/RWY 16L and route towards BAY-POINT (BAY) and BANANA EAST (BNE). (See note below)

Note: The aircraft should not, in normal circumstances, leave MRT until TW has effected coordination with Tower East (TE) and all Traffic Information (TI) passed i.e. RWY 16R/RWY 16L traffic, helicopter arrivals etc.

RWY 33

SEA-POINT (SEA) Departure

After departure RWY 33 turn right towards CENTRAL ROUNDABOUT (CRA) and climb to 1000 FT to cross CRA at 1000 FT, contact Hamad Tower West (TW) once clear of RWY. From CRA route to SOUTH ROUNDABOUT (SRA) and Hold, whilst awaiting clearance from ATC. When cleared, cross south of threshold RWY 34L/RWY 34R and route towards SEA-POINT (SEA) and BANANA EAST (BNE). (See note below).

Note: The aircraft should not, in normal circumstances, leave SRA until TW has effected coordination with Tower East (TE) and all Traffic Information (TI) passed i.e. RWY 34L/RWY 34R traffic, helicopter arrivals etc.

3.5.2 Aircraft inbound to Doha International Airport

3.5.2.1 The following routes are available 24/7.

	Runway	Name	Description
Note1: Aircraft to contact Doha TWR 10 minutes before entering the CTR. Note2: The HELI SOUTH ROUTE is restricted to periods when the visibility is 5000 M or greater. Below 5000 M the HELI SOUTH route is not available except for Gulf Helicopters which can operate VFR down to 3500 M visibility.
a)	RWY 15	HELI SPOON 15 Arrival	Aircraft will route direct SPOON (SPN) to cross SPN maintaining 1000 FT and then route CABLE (CAB), SARAH (SRH), LANDMARK (LMK) and Hold overhead ROMEO (RME) if required. From RME, route as cleared by ATC for right base RWY 15.
b)	RWY 33	HELI SPOON 33 Arrival	Aircraft will route direct SPOON (SPN) to cross SPN maintaining 1000 FT and then route CABLE (CAB), SARAH (SRH), LANDMARK (LMK) then direct X-RAY (XRY) hold overhead XRY if required. From XRY, route as cleared by ATC for landing RWY 33.
c)	RWY 33	HELI SOUTH 33 Arrival	Aircraft will enter via SOUTH POINT 2 (SP2) at 1000 FT and is required to pass estimate for SOUTH POINT 1 (SP1) and the POB to Doha TWR on 118.9 MHz. Aircraft to monitor Hamad TWR East Frequency 118.525 MHz. At SOUTH POINT 1 (SP1), helicopters to contact Doha TWR 118.9 MHz for joining instructions.

3.5.2.2 The following routes are subject to ATC approval.

Aircraft inbound from the North and the East
All aircraft inbound to Doha International Airport shall contact Hamad Tower East (TE) at least 10 minutes before entering the CTR. Once cleared by ATC, the aircraft will route as below and arrange to cross the CTR boundary at 500 FT. Aircraft inbound on radials West of DOH VOR R019 will route direct to HAB and then to BNE to hold and wait for clearance to proceed. Aircraft inbound on radials East of DOH VOR R019 will route direct to BNE to hold and wait for clearance to proceed. Aircraft inbound from the East will route direct to BNE to hold and wait for clearance to proceed. The holding pattern will be towards the East of BNE to remain clear of Banana Island. Once clearance is obtained, the aircraft will follow the standard arrival route as below depending on Runway-in-use.

Aircraft inbound from the North and the East

All aircraft inbound to Doha International Airport shall contact Hamad Tower East (TE) at least 10 minutes before entering the CTR. Once cleared by ATC, the aircraft will route as below and arrange to cross the CTR boundary at 500 FT.

Aircraft inbound on radials West of DOH VOR R019 will route direct to HAB and then to BNE to hold and wait for clearance to proceed.
Aircraft inbound on radials East of DOH VOR R019 will route direct to BNE to hold and wait for clearance to proceed.
Aircraft inbound from the East will route direct to BNE to hold and wait for clearance to proceed.
The holding pattern will be towards the East of BNE to remain clear of Banana Island.
Once clearance is obtained, the aircraft will follow the standard arrival route as below depending on Runway-in-use.

	Runway	Name	Description
a)	RWY 15	BAY-POINT (BAY) Arrival	When cleared to leave BANANA-EAST (BNE), aircraft will be tactically routed to Hold at BAY-POINT (BAY). Aircraft should not, in normal circumstances, leave the BAY Hold until TE has effected coordination with TW and all traffic information passed i.e. RWY 16L/RWY 16R traffic, helicopter departures, etc. Doha TWR should also be informed. From BAY, aircraft should route North of threshold RWY 16L/RWY 16R towards MRT and join long final RWY 15. Once clear of the Eastern RWY, aircraft should be passed traffic information as necessary and transferred to Doha TWR (or TW if they request it during coordination). Helicopter may be requested to Hold at MRT if, required due to traffic on final RWY 15.
b)	RWY 33	SEA-POINT (SEA) Arrival	When cleared to leave BANANA-EAST (BNE), aircraft will be tactically routed to Hold at SEA. Aircraft should not, in normal circumstances, leave the SEA-POINT (SEA) hold until TE has effected coordination with TW and all traffic information passed i.e. RWY 34R/RWY 34L traffic, helicopter departures, etc. Doha TWR should also be informed. From SEA, aircraft should route South of threshold RWY 34R/RWY 34L towards SRA. Once clear of the Eastern RWY, aircraft should be passed traffic information as necessary and transferred to Doha TWR (or TW if they request it during coordination). Helicopter may be requested to Hold at SRA if required due to traffic on final RWY 33.

3.5.3 Special VFR operations

3.5.3.1 All traffic operating Special VFR (SVFR) will use the HELI SPOON (SPN) route and follow procedures as described above.

3.5.3.2 Doha TWR will obtain SVFR Clearance from Doha Director and then transfer aircraft to Director when instructed.

3.5.4 Radio Communication Failure during VMC.

Aircraft east of a line drawn between MRT and SRA.

Aircraft outside the CTR will route direct to BANANA EAST (BNE) and Hold for 3 minutes. There after the aircraft will route either to BAY or SEA depending on Runway-in-use and execute 2 Holds and visually check the landing area and the TWR for visual signals. Aircraft will then proceed and land on the RWY 34R/16L close to TWY A6, or if runway block land on TWY B.

Aircraft west of a line drawn between MRT and SRA.

Remain west of this line, Hold on western side of RWY 15/33 and observe TWR for visual signals. After 3 minutes proceed to land on Runway-in-use in Doha.

3.6 Standard VFR departure and arrival routes for Civil Fixed Wing Aircraft

3.6.1 Aircraft departing from Doha to the North

	Runway	Name	Description
a)	RWY 33	ASPIRE 33 Visual Departure	Climb straight ahead to 700 FT, turn to the West and remain clear of prohibited-area OTP45; route direct to ASPIRE (ASP); then direct to point SOFIA (SOF); then direct to point SHAMAL (SML). Climb as instructed by ATC to 1500 FT.
b)	RWY 15	ASPIRE 15 Visual Departure	Climb straight ahead to 700 FT turn to the West before the upwind end of RWY 15; route direct to point X-RAY (XRY); direct to ASPIRE (ASP); direct to point SOFIA (SOF); then direct to point SHAMAL (SML). Climb as instructed by ATC to 1500 FT.

3.6.2 Aircraft inbound to Doha from the North

	Runway	Name	Description
a)	RWY 33	ASPIRE 33 Visual Arrival	From point SHAMAL (SML), route direct to SOFIA (SOF) traffic must be 2000 FT at SOF then route direct to ASP and hold over ASP as required by ATC. From ASP, route direct to ZULU (ZUL) if requested, Hold at ZUL at 2000 FT. From ZUL, route direct to XRY and descend as instructed by ATC. Hold overhead XRY at 1500 FT when instructed or when cleared by ATC route for final approach RWY 33.
b)	RWY 15	ASPIRE 15 Visual Arrival	From point SHAMAL (SML), route direct to SOFIA (SOF). Traffic must be 2000 FT by SOF, then route direct to ASP and hold over ASP as required by ATC. When cleared by ATC proceed to ROMEO (RME) at 2000 FT. 1500 FT may be used subject to other VFR traffic; however at this altitude only 1 Hold may be carried out. If more Holds are required, the aircraft should maintain 2000 FT and then proceed to right hand as instructed by ATC. The Holding will be between ROMEO (RME) and MidMac roundabout. Notes: i) Aircraft to contact Doha TWR at SHAMAL (SML) for inbound clearance. Remarks: If more than two aircraft request to return to Doha from General Flying Area, and they will be required to Hold overhead ZULU (ZUL) for RWY 33 or ROMEO (RME) for RWY 15, the second and succeeding aircraft will be advised to remain clear of the CTR and standby for joining instruction. Only one aircraft can be Hold at any one time over ZUL and RME respectively. No Holding allowed overhead ASP. VFR traffic arriving on the ASPIRE (ASP) arrival are independent of Hamad IFR traffic. If a VFR arrival carries out a go-around, Doha TWR must inform Hamad TWR W if the traffic does not turn west before the upwind end of the runway. Hamad TWR W must pass any relevant traffic information to Doha TWR and pass traffic information to both Hamad departing and arriving traffic. Aircraft proceeding to right base RWY 15 from ROMEO (RME) will maintain 1500 FT until established on final approach to avoid infringing the restricted-area over the Amiri Diwan. After establishing the approach,subsequent touchdown may be expected approximately abeam intersection Q, with roll-out and vacation at intersection B/B1. Advanced students or instructors may be able to accomplish touchdown and roll-out earlier than the above, but no attempt should be made to request this from the pilot.

Runway

Name

Description

RWY 33

ASPIRE 33 Visual Arrival

From point SHAMAL (SML), route direct to SOFIA (SOF) traffic must be 2000 FT at SOF then route direct to ASP and hold over ASP as required by ATC. From ASP, route direct to ZULU (ZUL) if requested, Hold at ZUL at 2000 FT. From ZUL, route direct to XRY and descend as instructed by ATC. Hold overhead XRY at 1500 FT when instructed or when cleared by ATC route for final approach RWY 33.

RWY 15

ASPIRE 15 Visual Arrival

From point SHAMAL (SML), route direct to SOFIA (SOF). Traffic must be 2000 FT by SOF, then route direct to ASP and hold over ASP as required by ATC. When cleared by ATC proceed to ROMEO (RME) at 2000 FT. 1500 FT may be used subject to other VFR traffic; however at this altitude only 1 Hold may be carried out. If more Holds are required, the aircraft should maintain 2000 FT and then proceed to right hand as instructed by ATC. The Holding will be between ROMEO (RME) and MidMac roundabout.

Notes:
i) Aircraft to contact Doha TWR at SHAMAL (SML) for inbound clearance.

Remarks:

If more than two aircraft request to return to Doha from General Flying Area, and they will be required to Hold overhead ZULU (ZUL) for RWY 33 or ROMEO (RME) for RWY 15, the second and succeeding aircraft will be advised to remain clear of the CTR and standby for joining instruction. Only one aircraft can be Hold at any one time over ZUL and RME respectively. No Holding allowed overhead ASP.
VFR traffic arriving on the ASPIRE (ASP) arrival are independent of Hamad IFR traffic. If a VFR arrival carries out a go-around, Doha TWR must inform Hamad TWR W if the traffic does not turn west before the upwind end of the runway. Hamad TWR W must pass any relevant traffic information to Doha TWR and pass traffic information to both Hamad departing and arriving traffic.
Aircraft proceeding to right base RWY 15 from ROMEO (RME) will maintain 1500 FT until established on final approach to avoid infringing the restricted-area over the Amiri Diwan. After establishing the approach,subsequent touchdown may be expected approximately abeam intersection Q, with roll-out and vacation at intersection B/B1.
Advanced students or instructors may be able to accomplish touchdown and roll-out earlier than the above, but no attempt should be made to request this from the pilot.

4 Radio failure procedures - VFR aircraft

4.1 Clearance received:
In the event of a radio failure after obtaining a clearance continue as per ATC clearance. On entry to aerodrome traffic pattern, join at southern boundary and proceed along north / south TWY D at 700 FT executing wing-waggling past the control tower and continue in a left-hand orbit until visual instructions received from tower.

4.2 No clearance received:
Proceed inbound via nearest reporting point to rejoin south of aerodrome and execute procedure as detailed in 4.1 (above). Aircraft inbound from ALPHA to route west of the city prior to rejoin as detailed in 4.1 (above).

4.3 Aircraft operations to Halul Island or off-shore rigs will not be subjected to these procedures.

5 Runway utilisation

To ensure the maximum runway utilisation, pilots are expected to comply with the following operational procedures.

5.1 Departures

When given clearance to enter the runway and take off, the manoeuvre shall commence without delay. If pre-take off checks have not been completed, ATC must be advised and the delay taken up at the holding point.

5.2 Arrivals

Arriving flights shall, on completion of the landing roll, be excepted to vacate expeditiously at the first available taxiway exit, or as instructed by ATC. The aircraft should not be slowed significantly below normal taxi speed, or stopped, on the exit taxiway unless approved by ATC.

6 Ground movement

Pilots should adhere to centreline guidance on taxiways at all times.

6.1 Departures

Departing aircraft are advised to switch - on their transponder before requesting startup clearance from ATC. If an allocated code has not been assigned under DCL (Departure Clearance) procedures, conspicuity code A2000 should be selected.

6.2 Arrivals

Landing aircraft to maintain their transponder switched - on until they park on the stand.

7 Arrival Aircraft Contact Procedure

In the absence of instructions by Doha APP to transfer frequency, landing aircraft are advised to contact Doha Tower – Frequency 118.900 MHz at 5 NM final.

8 RNP INSTRUMENT APPROACH PROCEDURE

8.1 Waypoint list

Designator	Co-ordinates	Approach procedure
Note: Waypoints marked with asterisk () are listed in ENR 4.4*
MAXMO*	253003.10N 0512732.91E	RNP RWY15 (LNAV ONLY)
BD401	252344.28N 0513020.49E	RNP RWY15 (LNAV ONLY)
RW15	251626.13N 0513333.92E	RNP RWY15 (LNAV ONLY)
DEKMI	250006.66N 0513226.55E	RNP RWY15 (LNAV ONLY)
BUBOG	250204.78N 0514245.93E	RNP RWY15 (LNAV ONLY)
REVAT	251020.75N 0514932.10E	RNP RWY15 (LNAV ONLY)
NAJMA*	250057.64N 0514022.44E	RNP RWY33
BD701	250558.04N 0513810.48E	RNP RWY33
BD702	251401.07N 0513437.82E	RNP RWY33
SILDA	252100.22N 0513132.97E	RNP RWY33
GITNI	252633.64N 0512657.57E	RNP RWY33
IVIKA	252816.47N 0513625.72E	RNP RWY33
ELILO	252439.52N 0514513.38E	RNP RWY33

OTBD AD 2.23 ADDITIONAL INFORMATION

1 Visual docking guidance system (VDGS)

1.1 General safety measures

1.1.1 The VDGS has a built-in error detection program to inform the aircraft pilot of impending dangers during the docking procedure. If the pilot is unsure of the information being shown on the VDGS display unit, he / she must immediately stop the aircraft and obtain further information for clearance.

1.1.2 The pilot shall not enter the stand area, unless the docking system first is showing the vertical running arrows.

1.1.3 The pilot shall not enter the stand area, unless the aircraft type displayed is equal to the approaching aircraft.

1.1.4 When using the docking system, pilots are advised to taxi into the aircraft stand at minimum speed. The system will display "SLOW DOWN" to inform the pilot if the aircraft‘s taxiing speed is too fast. (See ITEM 1.2.6 of Docking Procedures)

1.1.5 To avoid overshooting, pilots are advised to approach the stop position slowly and observe the closing rate information displayed. Pilots should stop the aircraft immediately when seeing the "STOP" display or when given the "STOP" sign by the aircraft marshaller.

1.1.6 THE SBU MESSAGE - The message STOP SBU means that docking has been interrupted and has to be resumed only by manual guidance. Do not try to resume docking without manual guidance.

1.2 Stand docking procedures

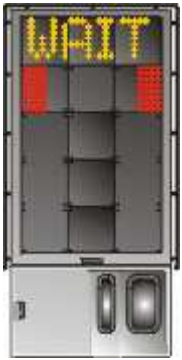

1.2.1 START-OF-DOCKING The system is activated by pressing one of the aircraft type buttons on the operator panel. When the system has been activated, 'WAIT' will be displayed.

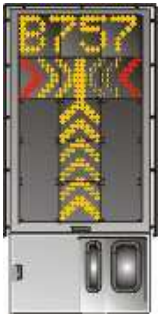

1.2.2 CAPTURE The yellow scrolling arrows indicate that the system is activated and in capture mode, searching for an approaching aircraft. It shall be checked that the correct aircraft type is displayed. The lead-in line shall be followed. The pilot must not enter the parking stand area unless the yellow scrolling arrows are displayed.
1.2.3 TRACKING On successful capture of the aircraft, the yellow scrolling arrows are replaced by the yellow centre line indicator (Closing Rate Bar). The flashing red arrow indicates the direction the aircraft should turn. The vertical yellow arrow shows position in relation to the centre line. This indicator gives the correct position and azimuth guidance. In the figure, the yellow arrow indicates an aircraft to the left of the centre line and the red flashing arrow indicates the direction to steer in-order to align the aircraft with the centre line.
1.2.4 CLOSING RATE Display of digital countdown starts when the aircraft is 20 meters from stop position. When the aircraft is less than 12 meters from the stop-position, the closing rate is indicated by turning off one row of the centre line symbol per half a metre of the distance, covered by the aircraft towards the stop-position of the stand. The picture illustrates the aircraft is 10 metres from the stop-position, slightly left of the centre line. The red arrow indicates the direction to steer.

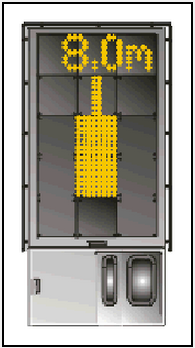

1.2.5 ALIGNED TO CENTRE The absence of any direction arrow indicates the aircraft is on the centre line. The picture illustrates that the aircraft is 8 meters from the stop-position and is on the centre line.
1.2.6 SLOW DOWN If the aircraft is approaching faster than the accepted speed, the system will show 'SLOW DOWN' as a warning to the pilot.

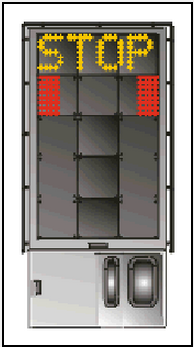

1.2.7 STOP-POSITION REACHED When the correct stop-position is reached, the display will show 'STOP' and red lights will be lit.

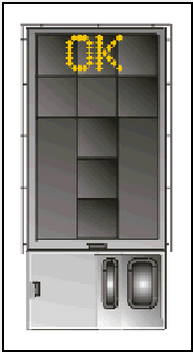

1.2.8 DOCKING COMPLETED When the aircraft has parked, 'OK' will be displayed.
1.2.9 OVERSHOOT If the aircraft has overshot the stop-position, 'TOO FAR' will be displayed.

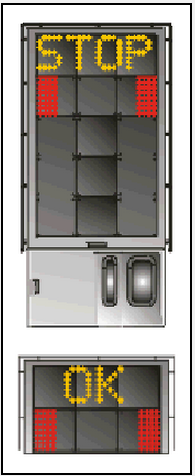

1.2.10 STOP SHORT If the aircraft is found standing still but has not reached the intended stop-position, the message 'STOP OK' will be shown after a while.

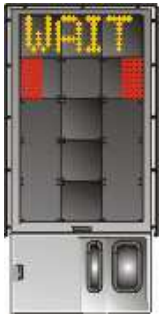

1.2.11 WAIT If some object is blocking the view toward the approaching aircraft or the detected aircraft is lost during docking close to STOP, the display will show 'WAIT'. The docking will continue as soon as the blocking object has disappeared or the system detects the aircraft again. The pilot must not proceed further, unless the ‘WAIT’ message has been superseded by the closing rate bar.

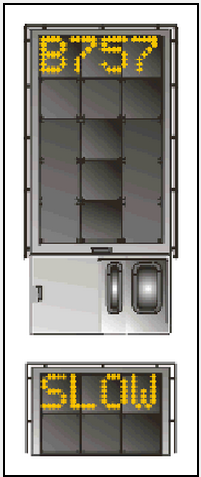

1.2.12 SLOW This display can be shown for two reasons: BAD WEATHER CONDITION During heavy sandstorm, fog or rain, the visibility for the docking system can be reduced. When the system is activated and in capture mode, the display will disable the yellow scrolling arrows and display 'SLOW' and the aircraft type. As soon as the system detects the approaching aircraft, the closing rate bar will appear. If the system has been configured in this mode to make a shortened ID verification (check of engine position excluded), the aircraft symbol will blink to give attention. AIRCRAFT LOST DURING DOCKING If the aircraft is lost during docking at a distance greater than STOP plus the distance between nose and engine, the display will show 'SLOW'. As soon as the system detects the approaching aircraft, the closing-rate bar will appear. The pilot must not proceed further, unless the closing rate bar is shown.
1.2.13 AIRCRAFT VERIFICATION FAILURE During entry into the stand, the aircraft geometry is being checked. If, for any reason, aircraft verification is not made 12 meters before the stop-position, the display will first show 'WAIT' and make a second verification check. If this fails, 'STOP' and 'ID FAIL' will be displayed. The text will be alternating on the upper two rows of the display. The pilot must not proceed further without manual guidance, unless the ‘WAIT’ message has been superseded by the closing rate bar.

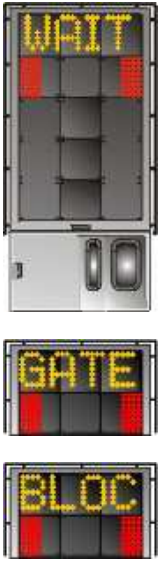

1.2.14 GATE BLOCKED If an object is found blocking the view from the docking system to the planned stop position for the aircraft, the docking procedure will be halted with a 'WAIT' and 'GATE BLOC' message. The docking procedure will resume as soon as the blocking object has been removed. The pilot must not proceed further without manual guidance, unless the ‘WAIT’ message has been superseded by the closing rate bar.

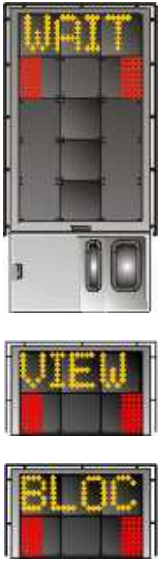

1.2.15 VIEW BLOCKED If the view towards the approaching aircraft is hindered, for instance by dirt on the window, the docking system will report a view blocked condition, i.e. ‘VIEW BLOC’. Once the system is able to see the aircraft through the dirt, the message will be replaced by closing rate bar. The pilot must not proceed further without manual guidance, unless the ‘WAIT’ message has been superseded by the closing rate bar.

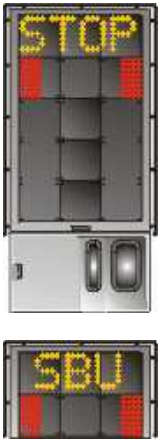

1.2.16 SBU-STOP Any unrecoverable error during the docking procedure will generate a SBU (Safety Back Up) condition. The display will show red stop-bar and 'STOP SBU' message. A manual backup procedure will be used for docking guidance.

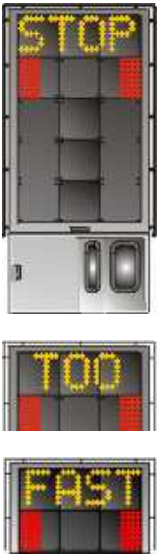

1.2.17 TOO FAST If the aircraft approaches with a speed higher than the docking system can handle, the message 'STOP' (with red squares) and 'TOO FAST' will be displayed. The docking system will be re-started or the docking procedure completed by manual guidance.
1.2.18 EMERGENCY STOP Pilots should stop the aircraft immediately when 'STOP' is displayed.

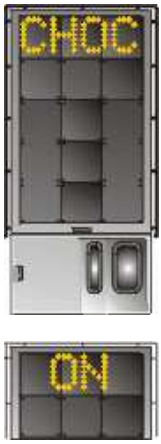

1.2.19 CHOCKS ON 'CHOC ON' will be displayed, when the ground staff has put the chocks in front of the nose wheel and pressed the "chocks on" button on the operator panel.
1.2.20 ERROR If a system error occurs, the message 'ERR' will be displayed.

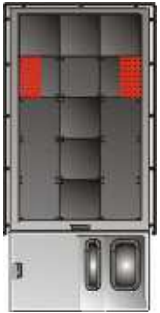

1.2.21 SYSTEM BREAKDOWN In case of a severe system failure, the display will go black except for the red stop indicator. A manual backup procedure will be used for docking guidance.
1.2.22 POWER FAILURE In case of a power failure, the display will be completely black. A manual backup procedure will be used for docking guidance.
