AD 2 Aerodromes

OTBD — DOHA INTERNATIONAL

OTBD AD 2.1 AERODROME LOCATION INDICATOR AND NAME

OTBD — DOHA INTERNATIONAL

OTBD AD 2.2 AERODROME GEOGRAPHICAL AND ADMINISTRATIVE DATA

1ARP coordinates and site at AD251539.81N 0513354.34E, Mid - point of RWY, on CL.
2Direction and distance from (city)3.5 NM SE from Doha City Centre
3Elevation/Reference temperature37 FT / 41° C
4Geoid undulation at AD ELEV PSN-98 FT
5MAG VAR/Annual change2.3˚E (JUN 2014) / 0.05˚E
6AD Operator, address, telephone, telefax, telex, AFS and website address
Post:Chief Operating Office
Hamad International Airport
P.O. Box 24730
Doha
State of Qatar
Tel:(974) 4010 7715 / (974) 4010 3999
Fax:(974) 4010 1010
SITA:DOHAOXH
7Types of traffic permitted (IFR/VFR)IFR / VFR
8RemarksAirport Operations Control Centre Duty Manager (AOCC DM) 24/7:
Tel:(974) 4010 3999

OTBD AD 2.3 OPERATIONAL HOURS

1AD OperatorH24
2Customs and immigrationH24
3Health and sanitationH24
4AIS Briefing OfficeH24
5ATS Reporting Office (ARO)H24
6MET Briefing OfficeH24
7ATSH24
8FuellingOn prior notification to fuel provider. See Item 10 of GEN 1.1
9HandlingOn prior notification to ground handler. See Item 9 of GEN1.1
10SecurityH24
11De-icingNot required due to local climate
12RemarksNIL

OTBD AD 2.4 HANDLING SERVICES AND FACILITIES

1Cargo-handling facilitiesAvailable. Cranes by prior arrangement only.
2Fuel/oil typesFuel:
Jet A1
AVGAS 100 available only at Qatar Aeronautical College (QAC).
Oil: NIL.
3Fuelling facilities/capacityOn prior notification. See Item 10 of GEN 1.1
4De-icing facilitiesNot required due to local climate.
5Hangar space for visiting aircraftNIL
6Repair facilities for visiting aircraftContact QAS, see Item 9 of GEN 1.1
7RemarksFor handling facilities / services contact QAS, see Item 9 of GEN1.1

OTBD AD 2.5 PASSENGER FACILITIES

1HotelsHotel accommodation available in Doha City.
2RestaurantsNIL
3TransportationNIL
4Medical facilitiesFull medical facilities available in Doha
5Bank and Post OfficeNIL
6Tourist OfficeNIL
7RemarksNIL

OTBD AD 2.6 RESCUE AND FIRE FIGHTING SERVICES

1AD category for fire fightingCAT 7 with CAT 10 available on request. Notification time to upgrade to CAT 10 will require a period of APRX 45 MIN.
2Rescue equipmentAs per ICAO Annex 14
3Capability for removal of disabled aircraftAll aircraft types, Contact (974) 4018 4500 / 4018 4977
4RemarksTotal number of trained personnel: 121
Communication with aircraft on ground available on 121.6 MHz

OTBD AD 2.7 SEASONAL AVAILABILITY - CLEARING

1Types of clearing equipmentNIL
2Clearance prioritiesN/A
3RemarksLocal climate precludes the requirement. Aerodrome is available in all seasons.

OTBD AD 2.8 APRONS, TAXIWAYS AND CHECK LOCATIONS/POSITIONS DATA

1Designation, surface and strength of apronsMAIN APRON: concrete, PCN 70 / R / A / X / T
WESTERN APRON: asphalt, PCN 70 / F/ A / X / U
EASTERN APRON (1): concrete, PCN 70 / R / B / W / U
EASTERN APRON (2)
- (East of TWY D2 East): concrete, PCN 72 / R / B / W / T
- (West of TWY D2 East): concrete, PCN 68 / R / B / W / T
EASTERN APRON (3): concrete, PCN 70 / R / B / W / U
EASTERN APRON (4): concrete, PCN 79 / R / A / W / T
EASTERN APRON EXTENSION: concrete, PCN 63 / R / A / X / T
RIZON APRON: asphalt, PCN 40 / F / B / X / U
ISOLATED PARKING: concrete, PCN 68 / R / B / W / T
2Designation, width, surface and strength of taxiwaysTWY A: 34 M, asphalt, PCN 60 / F / A / X / T
TWY C: 23 M, asphalt, PCN 60 / F / A / X / T
TWY D: 23 M, asphalt, PCN 60 / F / A / X / T
TWY F: 26 M, asphalt, PCN 60 / F / A / X / T
TWY P: 33 M, asphalt, PCN 70 / F / A / X / T
TWY B, TWY E1, TWY E2, TWY G: 29 M, asphalt,
PCN 60 / F / A / X / T
TWY B1, TWY C1, TWY D1, TWY D3, TWY D4: 29 M, asphalt, PCN 70 / F / A / X / U
TWY D2, TWY D2 EAST, TWY V, TWY Z: 23 M, asphalt,
PCN 72 / F / B / W / T
TWY D2C: 18 M, asphalt, PCN 46 / F / B / W / U
TWY U: 18 M, asphalt, PCN 40 / F / B / X / U
TWY H, TWY J, TWY K, TWY L, TWY M, TWY N, TWY Q, TWY R, TWY S, TWY T, TWY Y: 23 M, asphalt, PCN 60 / F / A / X / T
TWY FA2: 25 M, asphalt, PCN 37 / F / A / X / U
3Altimeter checkpoint location and elevationMAIN APRON (Stands, 34 A1 to A10 including MARS stands) – 35 FT
MAIN APRON (Stands A11 to A18) – 20 FT
WESTERN APRON – 30 FT
EASTERN APRON (1) – 29 FT
EASTERN APRON (2) – 21 FT
EASTERN APRON (3) – 18 FT
EASTERN APRON (4) – 16 FTAMSL
4VOR checkpointsHolding point TWY A 335R DIA 2.56 NM
Holding point TWY C 334R DIA 1.9 NM
Holding point TWY G 329R DIA 0.55 NM
5INS checkpointsSee ACFT PARKING / DOCKING CHART
6RemarksNIL

OTBD AD 2.9 SURFACE MOVEMENT GUIDANCE AND CONTROL SYSTEM AND MARKINGS

1Use of aircraft stand ID signs, TWY guide lines and visual docking/parking guidance system at aircraft stands

Taxiing guidance signs at all intersections with TWY and RWY at all holding positions

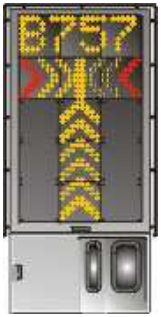

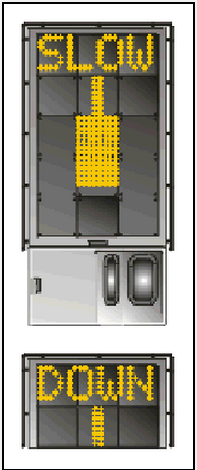

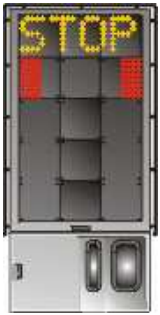

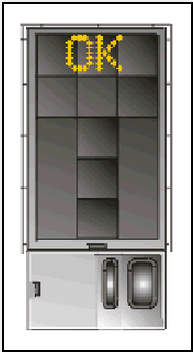

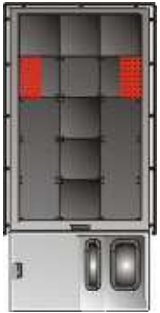

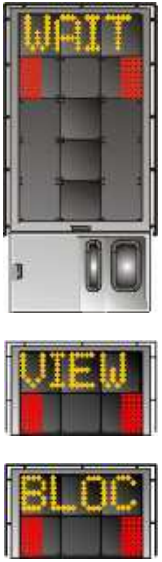

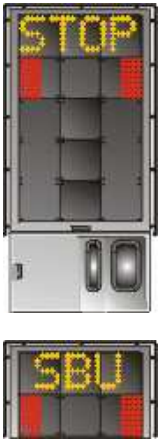

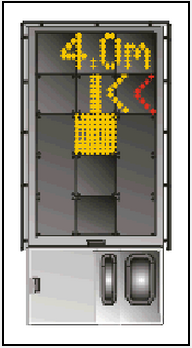

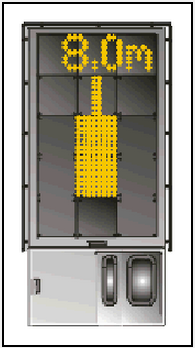

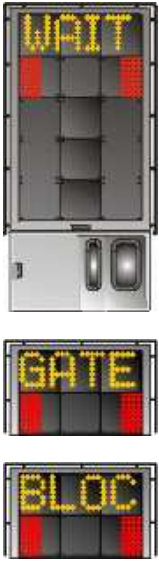

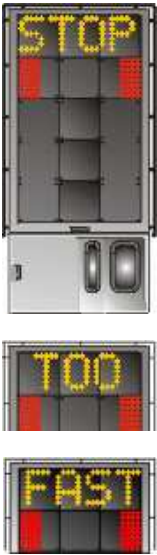

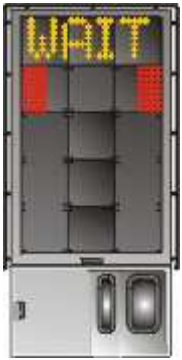

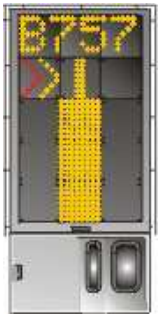

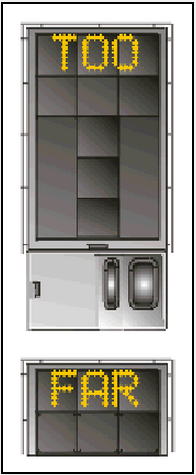

Visual Docking Guidance System (VDGS) installed and operational at bays A1 to A6, A9 to A18, E1 to E24, W6 and W7.


Visual Docking Guidance System (VDGS) not available on stands A1N, A1L, A2L, A2R, A3L, A3R, A4L, A4R, A5L, A5R, A6L, A6R, A10L, A10R, G1, G2, G2P, G3, E1L, E1R, E2L, E2R, E6L, E6R, E7L, E7R, E9L, E9R, E10L, E10R, E13L, E13R, E14L, E14R, E15L, E15R, E16L, E16R, E17L, E17R, E18L, E18R, E19L, E19R, E20L, E20R, E21L, E21R, E22L, E22R, E23L, E23R, E24L, E24R, E25, E26, E27, E27L, E28, E29, E30, E31, C1-C9 and Pilots to follow Marshallers instructions.


For information on Visual Docking Guidance System (VDGS) see OTBD AD 2.23.1 Visual Docking Guidance System

2RWY and TWY markingsRWY: designation, THR, displaced landing THR, TDZ, CL, edge, RWY end as appropriately marked
TWY: Edge, CL, holding positions at all TWY / RWY intersections marked
3Stop barsStop bars where appropriate.
4RemarksTWY G: RWY holding point CAT II hold markings only. No CAT I markings available.
TWY D2C: Taxiing to/from stands will be via follow-me vehicle

OTBD AD 2.10 AERODROME OBSTACLES

1 Obstacles in Area 2
1.1 Obstacles in Area 2 are available in electronic format. Refer to GEN 3.1.6 Electronic terrain and obstacle data.
2 Obstacles in Area 3
2.1 Obstacles in Area 3 – Not Available.

OTBD AD 2.11 METEOROLOGICAL INFORMATION PROVIDED

1Associated MET OfficeDOHA MET OFFICE
2Hours of serviceH24
MET Office outside hoursNIL
3Office responsible for TAF preparationDOHA MET OFFICE
Periods of validity24 HR
4Type forecastTREND
Interval of issuance½ HR
5Briefing/consultation providedPersonal consultation, partial self briefing, telephone to forecaster
6Flight documentationCharts, abbreviated plain language text
Language(s) usedEnglish
7Charts and other information available for briefing or consultationS, U25, P25, (other levels on request), T, SWH (East & West), SWM (MID), TB (Gulf sector winds)
8Supplementary equipment available for providing informationTelefax
9ATS units provided with informationDOHA TOWER, DOHA APPROACH
10Additional information (limitation of service, etc.)NIL

OTBD AD 2.12 RUNWAY PHYSICAL CHARACTERISTICS

Designations RWY NRTRUE BRGDimensions of RWY (M)Strength (PCN) and surface of RWY and SWYTHR coordinates,
RWY end coordinates,
THR geoid undulation
THR elevation and highest elevation of TDZ of precision APP RWY
123456
15158.15˚4 570 x 4660 / F / A / X / T
asphalt
251626.13N
0513333.92E
251430.88N
0513424.73E
-98.23 FT
THR 34.75 FT
TDZ 34.75 FT
33338.16˚4 570 x 4660 / F / A / X / T
asphalt
251430.88N
0513424.73E
251648.74N
0513323.95E
-98.43 FT
THR 26.96 FT
TDZ 27.32 FT
Designations RWY NRSlope of RWY- SWYSWY dimensions (M)CWY dimensions (M)Strip dimensions (M)OFZRemarks
RWYSWY
1789101112
150.11% first 1 524 M then 0.62% next 762 M then 0.00% next 914 M then 0.48% next 427 M then 0.15% next 945 MNILNIL274 x 1504 690 x 300YesNon load bearing shoulders 15 M
330.15% first 945 M then 0.48% next 427 M then 0.00% next 914 M then 0.62% next 762 M then 0.11% next 1 524 MNILNIL183 x 1504 690 x 300YesNon load bearing shoulders 15 M

OTBD AD 2.13 DECLARED DISTANCES

RWY DesignatorIntersection DeparturesTORA (M)TODA (M)ASDA (M)LDA (M)Remarks
1234567
15Not applicable4 5704 8444 5703 820Threshold Displacement 750 M
TWY A3 8214 0953 821Not applicableNIL
TWY B3 0583 3323 058Not applicable
TWY B13 0583 3323 058Not applicable
TWY C12 5162 7902 516Not applicable
TWY C2 4902 7642 490Not applicable
TWY P2 4512 7252 451Not applicable
TWY E11 1441 4181 144Not applicable
TWY N1 1441 4181 144Not applicable
TWY E2706980706Not applicable
TWY M706980706Not applicable
33Not applicable4 5704 7534 5704 570NIL
TWY F4 1264 3094 126Not applicable
TWY L4 1264 3094 126Not applicable
TWY K4 0244 2074 024Not applicable
TWY E23 8904 0733 890Not applicable
TWY M3 8904 0733 890Not applicable
TWY E13 4503 6333 450Not applicable
TWY N3 4503 6333 450Not applicable
LOOP2 4822 6652 482Not applicable
TWY C2 1452 3282 145Not applicable
TWY P2 1452 3282 145Not applicable
TWY B1 5421 7251 542Not applicable
TWY B11 5421 7251 542Not applicable
TWY A8181 001818Not applicable

Note: Intersection departures are allowed subject to the following:
a. Initiated by pilot and approved by ATC, subject to traffic.
b. ATC is able to keep aircraft visual at all times

OTBD AD 2.14 APPROACH AND RUNWAY LIGHTING

RWY
Designator
APCH LGT type,
LEN,
INTST
THR LGT,
colour,
WBAR
VASIS
(MEHT)
PAPI
TDZ LGT
LEN
RWY Centre Line LGT
Length, spacing,
colour, INTST
123456
15ICAO CAT I precision approach lighting system
900 M
LIH
Green supplemented by green WBARPAPI 3.5˚
(73.4 FT)
NILLength: 4 570 M
Spacing: 30 M
Colour:
fm 0 M to last 900 M White,
last 900 M to last 300 M Red / White,
last 300 M Red
INTST: LIH
33ICAO CAT II and III precision approach lighting system
900 M
LIH
Green supplemented by green WBARPAPI 3˚
(65.7 FT)
900 MLength: 4 570 M
Spacing: 30 M
Colour:
fm 0 M to last 900 M White,
last 900 M to last 300 M Red / White,
last 300 M Red
INTST: LIH
RWY DesignatorRWY edge LGT
LEN, spacing,
colour, INTST
RWY End LGT
colour,
WBAR
SWY LGT
LEN,
colour
Remarks
178910
15Length: 4 570 M
Spacing: 60 M
Colour:
fm 0 M to first 750 M Red,
750 M to last 600 M White,
last 600 M Amber
INTST: LIH
Red
NIL
NILOn full length departures, the first 750 M of edge lights are Red due to DTHR
33Length: 4 570 M
Spacing: 60 M
Colour: fm 0 M to last 600 M White,
last 600 M Amber
INTST: LIH
Red
NIL
NILNIL

OTBD AD 2.15 OTHER LIGHTING, SECONDARY POWER SUPPLY

1ABN /IBN location, characteristics and hours of operation

ABN: NIL

IBN: NIL

2LDI location and LGTLDI: NIL
Anemometer location and LGTAnemometer: Located APRX at 117 M west of RCL ABM start of RWY 15 and 268 M east of RCL ABM turning pad in the middle of the RWY; Lighted.
3TWY edge and centre line lighting

Edge: All taxiway edge-Blue.

Centre line: Green.

4Secondary power supply/switch-over time

Secondary power for CAT I / II / III Ops - on UPS immediate power and with battery backup for up to 30 minutes. Backup generator also available. Other lightings on backup generator.

Switch-over time: Switch over time within 15 seconds.
Stand - by generator on test 0530 - 0630 every WED.

5Remarks

Blue - Apron edge lights.

OTBD AD 2.16 HELICOPTER LANDING AREA

1Coordinates TLOF or THR of FATO
Geoid undulation.
NIL
2TLOF and/or FATO elevation M/FTNIL
3TLOF and FATO area dimensions, surface, strength, markingNIL
4True BRG of FATONIL
5Declared distance availableNIL
6APP and FATO lightingNIL
7RemarksAs directed by ATC

OTBD AD 2.17 ATS AIRSPACE

1Designation and lateral limitsDOHA CTR:
253407N 0513740E - 253024N 0513919E then
clockwise 20NM arc centred on 251020.2N 0513837.8E to
252815N 0514835E - 251254N 0515519E then
clockwise 20NM arc centred on 251939.1N 0513431.6E to
250143N 0512437E - 245951N 0511930E - 250033.53N 0511911.22E then clockwise 5 NM arc centred on 250533.927N 0511933.084E to
250856.61N 0511528.58E - 251510N 0511243E - 251703N 0511750E then
clockwise 20NM arc centred on 251020.2N 0513837.8E to
252425N 0512254E - 252808N 0512115E then
clockwise 20NM arc centred on 251403.8N 0513659.4E to
253407N 0513740E
2Vertical limitsSFC to 2 500 FT
3Airspace classificationD
4ATS unit call sign
Language(s)
DOHA Tower
English
5Transition altitude13 000 FT
6Hours of applicabilityH24
7RemarksNIL

OTBD AD 2.18 ATS COMMUNICATION FACILITIES

Service designationCall signFrequencies allocation (MHz)Logon
address
Hours of operationRemarks
123456
APPDoha Radar121.100N/AH24Primary
Doha Approach119.725N/AH24Primary
120.600N/AH24Secondary
Doha Director119.400N/AH24Primary
121.125N/AH24Secondary
-121.500N/AH24Emergency
-243.000N/AH24Emergency
TWRDoha Tower118.900N/AH24Primary
-121.500N/AH24Emergency
-243.000N/AH24Emegency
GMC VehicleDoha Ground121.800N/AH24Vehicles only
GMCDoha Ground121.925N/A

Daily 0400 - 2200 during peak traffic conditions or may be changed according to ATC requirements

All TFC DEP OTBD for push back, start - up & taxi clearance

D-ATISDoha Information126.450DOHCAYAH24

Data Link Service available. ATIS broadcast can also be obtained via hotline: (974)  44656213

Note: all departing aircraft shall immediately contact "Doha Approach" on 119.725 MHz

OTBD AD 2.19 RADIO NAVIGATION AND LANDING AIDS

Type of Aid, MAG VAR,
Type of supported OPS
(for VOR/ILS/MLS, give declination)
IDENTFrequencyHours of operationPosition of transmitting antenna coordinatesElevation of DME transmitting antennaRemarks
1234567

DVOR/DME
(2.3˚E/2014)

DIA

112.400 MHz
Channel 71X

H24

251401.11N
0513437.85E

48.67  FTNIL

LOC RWY 33 ILS
CAT III

IBD

109.500 MHz

H24

251657.65N
0513320.01E

336˚ MAG 2.63 NM fm THR RWY 33,
ELEV 40.39 FT

GP RWY 33

332.600 MHz

H24

251442.20N
0513424.44E

GP Angle 3˚
RDH 52 FT

ILS DME RWY 33

IBD

Channel 32X

H24

251442.22N
0513424.48E

47.40 FTCo - located with GP, DIST zero TDZ

MM RWY 33

75 MHz

H24

251358.46N
0513439.02E

156˚ MAG 0.58 NM fm THR RWY 33

LOC RWY 15 ILS
CAT I

AMD

108.500 MHz

H24

251419.23N
0513429.87E

LOC unreliable below 3 000 FT between 18 and 25 DME fm AMD to the W of the CL RWY 15, ELEV 34.94 FT

GP RWY 15

329.900 MHz

H24

251617.94N
0513342.11E

GP Angle 3.5˚
RDH 60 FT

ILS DME RWY 15

AMD

Channel 22X

H24

251617.95N
0513342.17E

90.52 FTCo - located with GP, DIST zero TDZ

L

WK

323 KHz

H24

251053.05N
0513600.23E

156˚ MAG 3.90 NM fm THR RWY 33

OTBD AD 2.20 LOCAL AERODROME REGULATIONS

1 Airport regulations
  General
  1. Flight over Doha City prohibited below 2 000 FT unless authorized by ATC.
  2. Flight over QEAF Airbase below 1 500 FT prohibited at all times.
2 Taxiing to and from stands
2.1 Aircraft are restricted to push back from nose in parking stands. Exemptions will be granted to certain aircraft by the AD operator.
3 Parking area for small aircraft (General aviation)
  General aviation aircraft shall be guided by marshallers to the parking area (Stands C1-C9) for small aircraft.
4 Parking area for helicopters
  (To be developed).
5 Apron — taxiing during winter conditions
  Not applicable.
6 Taxiing — limitations
  Insufficient safety distances restrict large aircraft’s use of certain taxiways when using their own power. Further information will be given to each aircraft from the TWR or GMC.
7 School and training flights — technical test flights — use of runways
  Training flights permitted.
8 Helicopter traffic — limitation
  (To be developed).
9 Removal of disabled aircraft from runways
  When an aircraft is wrecked on a runway, it is the duty of the owner or user of such aircraft to have it removed as soon as possible. If a wrecked aircraft is not removed from the runway as quickly as possible by the owner or user, the aircraft will be removed by the aerodrome authority at the owner’s or user’s expense.

OTBD AD 2.21 NOISE ABATEMENT PROCEDURES

NIL

OTBD AD 2.22 FLIGHT PROCEDURES

1 Special procedures applicable to ILS category II / III operations at DOHA INTERNATIONAL
1.1 General
1.1.1 ILS Category II / III approach facilities are available at DOHA INTERNATIONAL airport as follows:

OTBD: RWY 33, CAT II or CAT III

1.1.2 Current information concerning surface wind and RVR is immediately available from ATC and significant changes will be reported in accordance with the provisions of PANS-ATM (DOC 4444).
1.1.3 Any Changes in the operational status expected to last more than one hour will be promulgated by NOTAM and pilots will be advised accordingly by ATIS or on initial contact with ATC.
1.2 Minima

See section OTBD AD 2.22.3 Aerodrome Operating Minima

1.3 Authorization

Operators will be permitted to execute CAT II / III approaches and landings if they are legally authorized by their own state of registration to do so, and after having conveyed a copy of their relevant certification papers to the:

Post:Chairman
Civil Aviation Authority
P.O. Box 3000
Doha
State of Qatar

And obtaining endorsement of acceptance there from.

2 Low visibility procedures (LVP)
2.1 As authorized by QCAA, Low Visibility Procedures (LVP) will be instituted at DOHA INTERNATIONAL airport whenever the official meteorological visibility condition is 1 500 M or less, or whenever the cloud base is 1 000 FT or less, or whenever conditions are such that all of the manoeuvring area cannot be seen from the control tower.
2.2 The procedures will ensure protection of the ILS localizer and glidepath signals to ILS CAT III limits, provide an effective surface movement guidance and control system, and ensure a safe ground environment for aircraft and vehicles.
2.3 LVP will not normally be introduced for aircraft carrying out practice CAT II or CAT III approaches although a request may be made to ATC for ILS signal protection.
2.4 Standard taxi routes during low visibility procedures
Stand Number(s)Departure / ArrivalRunwayStandard Taxi Route
A1 to A6, A1NDeparturesRWY 33

Taxi via TWY D and TWY G to ILS CAT II/III holding point for RWY 33.

ArrivalsRWY 33

Vacate via TWY A and taxi via TWY D to their allocated stands.

For aircraft unable to vacate via TWY A (see Note-3).

A9 to A18, A10L, A10RDeparturesRWY 33

Taxi via TWY D and TWY G to ILS CAT II/III holding point for RWY 33.

ArrivalsRWY 33

Vacate via TWY B and taxi via TWY D to their allocated stands.
Aircraft unable to turn onto TWY B will proceed to TWY A and then TWY D to their allocated stands.

For aircraft unable to vacate via TWY A (see Note-3).

W6, W7, G1, G2, G2P, G3DeparturesRWY 33

Taxi via TWY Y, then TWY D and TWY G to ILS CAT II/III holding point for RWY 33.

ArrivalsRWY 33

Vacate via TWY B and taxi via TWY D and TWY T to their allocated stands.

Aircraft unable to turn onto TWY B will taxi to TWY A, TWY D and TWY T to their allocated stands.

For aircraft unable to vacate via TWY A (see Note-3).

E1 to E3DeparturesRWY 33

Taxi via TWY D1, TWY D4, TWY D3, TWY D2, TWY D2 EAST, TWY P and TWY Z to holding point Z1 short of TWY N.

Subject to ATC discretion aircraft may be authorised to taxi via TWY D1, TWY D4, TWY D3, TWY D2, TWY D1, TWY P and TWY Z to holding point Z1 short of TWY N.

Subject to ATC discretion, aircraft may be authorised to taxi via TWY D1, TWY P and TWY Z to holding point Z1 short of TWY N.

Also see Note-1.

ArrivalsRWY 33

Follow the Standard taxi routes for aircraft landing RWY 33 and proceeding to the Eastern Apron stated in Note-2.

Turn left after TWY B1 and taxi via TWY D1 to their allocated stands.

For aircraft unable to vacate via TWY A (see Note-3).

E4 to E5DeparturesRWY 33

Taxi via TWY D1, TWY P and TWY Z to holding point Z1 short of TWY N.

Also see Note1.

ArrivalsRWY 33

Follow the Standard taxi routes for aircraft landing RWY 33 and proceeding to the Eastern Apron stated in Note-2.

Turn right after TWY B1 and taxi via TWY D1 to their allocated stands.

For aircraft unable to vacate via TWY A (see Note-3).

E6 to E10, E6L, E6R, E7L, E7R, E9L, E9R, E10L, E10RDeparturesRWY 33

Taxi via TWY D3, TWY D2, TWY D2 EAST, TWY P and TWY Z to holding point Z1 short of TWY N.

Subject to ATC discretion, aircraft may be authorised to taxi via TWY D3, TWY D2, TWY D1, TWY P and TWY Z to holding point Z1 short of TWY N.

Also see Note-1.

ArrivalsRWY 33

Follow the Standard taxi routes for aircraft landing RWY 33 and proceeding to the Eastern Apron stated in Note-2.

Turn left after TWY B1 and taxi via TWY D1, TWY D4 and TWY D3 to their allocated stands.

For aircraft unable to vacate via TWY A (see Note-3).

E11 to E13, E13L, E13RDeparturesRWY 33

Taxi via TWY D2, TWY D2 EAST, TWY P and TWY Z to holding point Z1 short of TWY N.

Subject to ATC discretion, aircraft may be authorised to taxi via TWY D2, TWY D1, TWY P and TWY Z to holding point Z1 short of TWY N.

Also see Note-1.

ArrivalsRWY 33

Follow the Standard taxi routes for aircraft landing RWY 33 and proceeding to the Eastern Apron stated in Note-2.

Turn right after TWY B1 and proceed via TWY D1 and TWY D2 to their allocated stands.

For aircraft unable to vacate via TWY A (see Note-3).

E14 to E17, E14L, E14R, E15L, E15R, E16L, E16R, E17L, E17RDeparturesRWY 33

Taxi via TWY D2, TWY D2 EAST, TWY P and TWY Z to holding point Z1 short of TWY N.

Subject to ATC discretion, aircraft may be authorised to taxi via TWY D2, TWY D1, TWY P and TWY Z to holding point Z1 short of TWY N.

Also see Note-1.

ArrivalsRWY 33

Follow the Standard taxi routes for aircraft landing RWY 33 and proceeding to the Eastern Apron stated in Note-2.

Turn left after TWY B1 and taxi via TWY D1, TWY D4, TWY D3 and TWY D2 to their allocated stands.

For aircraft unable to vacate via TWY A (see Note-3).

E18 to E24, E18L, E18R, E19L, E19R, E20L, E20R, E21L, E21R, E22L, E22R, E23L, E23R E24L, E24RDeparturesRWY 33

Taxi via TWY P and TWY Z to holding point Z1 short of TWY N.

Also see Note-1.

ArrivalsRWY 33

Follow the standard taxi routes for aircraft landing RWY 33 and proceeding to the Eastern Apron stated in Note-2.

Turn left after TWY B1 and proceed via TWY D1, TWY D4, TWY D3, TWY D2, TWY D2 East and then right onto TWY P to their allocated stands.

For aircraft unable to vacate via TWY A (see Note-3).

E25 to E31, E27LDeparturesRWY 33

Taxi via TWY P and TWY Z to holding point Z1 short of TWY N.

Also see Note-1.

ArrivalsRWY 33

Follow the standard taxi routes for aircraft landing RWY 33 and proceeding to the Eastern Apron stated in Note-2.

Turn left after TWY B1 and proceed via TWY D1, TWY D4, TWY D3, TWY D2 and hold on TWY D2 EAST for the "FOLLOW ME" vehicle to escort them to their allocated stands.

For aircraft unable to vacate via TWY A (see Note-3).

E32 to E37DeparturesRWY 33

Taxi via TWY P and TWY Z to holding point Z1 short of TWY N.

Also see Note-1.

ArrivalsRWY 33

Follow the Standard taxi routes for aircraft landing RWY 33 and proceeding to the Eastern Apron stated in Note-2.

Turn left after TWY B1 and proceed via TWY D1, TWY D4, TWY D3, TWY D2, TWY D2 EAST and then right onto TWY P to their allocated stands.

For aircraft unable to vacate via TWY A (see Note-3).

C1 to C9DeparturesRWY 33

Taxi via TWY D2C, TWY D2 EAST, TWY P and TWY Z to holding point Z1 short of TWY N.

Subject to ATC discretion, aircraft may be authorised to taxi via TWY D2, TWY D1, TWY P and TWY Z to holding point Z1 short of TWY N.

Also see Note-1.

ArrivalsRWY 33

Follow the standard taxi routes for aircraft landing RWY 33 and proceeding to the Eastern Apron stated in Note-2. Turn left after TWY B1 and taxi via TWY D1, TWY D4, TWY D3, TWY D2, TWY D2 EAST and then TWY D2C to their allocated stands.

For aircraft unable to vacate via TWY A (see Note-3).

All stands in the Rizon ApronDeparturesRWY 33

Taxi via TWY U to holding point on TWY U.

When instructed by ATC, the aircraft will backtrack on the runway and vacate via TWY A.

Once aircraft vacates TWY A the aircraft will proceed via TWY D and TWY G to ILS CAT II/III holding point for RWY 33.

ArrivalsRWY 33

In the event that aircraft will proceed directly to the Rizon Apron after landing, the aircraft will vacate RWY 33 via TWY U.
OR

Aircraft will vacate RWY 33 via TWY B and proceed via TWY D to holding point at TWY A.
Once instructed by ATC, aircraft will enter the runway and proceed to TWY U and aircraft should report to ATC when the runway is vacated.

All stands in the Eastern Apron ExtensionDeparturesRWY 33

Taxi via TWY D2 EAST, turn left into TWY P and then TWY Z to CAT II/III ILS holding point Z1 on TWY Z.

See Note-1.

ArrivalsRWY 33

Follow the standard taxi routes for aircraft landing RWY 33 and proceeding to the Eastern Apron as stated in Note-2.

Turn left after TWY B1 and proceed via TWY D1, TWY D4, TWY D3, TWY D2 and to TWY D2 EAST for the "FOLLOW ME" vehicle to escort to the corresponding stands.

For aircraft unable to vacate via TWY A, (see Note-3).

Note-1: On reaching TWY N the aircraft will either:
Depart from TWY N
or
Aircraft requiring maximum take-off distance will cross the runway, when instructed by ATC and taxi via TWY E1, TWY D and TWY G to ILS CAT II/III holding point.

Note-2: Standard taxi routes for aircraft landing RWY 33 and proceeding to the Eastern Apron
All aircraft landing RWY 33 and bound for the Eastern Apron will vacate the runway via TWY B1 and proceed according to the standard taxi routes for Eastern Apron.
Aircraft unable to vacate the runway via TWY B1 will vacate via TWY A and taxi via TWY D to hold short of TWY B and standby for permission to cross via TWY B and TWY B1.

Note-3: Standard taxi routes for aircraft landing RWY 33 and that are unable to vacate via TWY A
In the event that an aircraft cannot vacate via TWY A due to an unusual situation, the aircraft will continue to the end, use the loop and backtrack on the runway to vacate via TWY A

If any assistance is required the aircraft will stop on the runway and the "FOLLOW ME" vehicle will be sent to assist the aircraft.

Radar Control should be advised immediately because the passing of TWY A may result in a missed approach for the succeeding aircraft. Standard missed approach procedures will then be followed.

3 Aerodrome operating minima
3.1 Landing operating minima
Straight-in RWYAircraft Category
ABCDE
RWY 15
ILSDA (H)
245 FT (210 FT)
RVR 550 M
DA (H)
254 FT (219 FT)
RVR 550 M
DA (H)
263 FT (228 FT)
RVR 550 M
DA (H)
272 FT (237 FT)
RVR 550 M
DA (H)
322 FT (287 FT)
RVR 650 M
ALS outRVR 1 200 MRVR 1 200 MRVR 1 200 MRVR 1 200 MRVR 1 400 M
LOCMDA (H)
520 FT (483 FT)
RVR 1 500 M
MDA (H)
520 FT (483 FT)
RVR 1 500 M
MDA (H)
520 FT (483 FT)
RVR 1 500 M
MDA (H)
520 FT (483 FT)
RVR 1 500 M
MDA (H)
520 FT (483 FT)
RVR 1 500 M
ALS outRVR 2 300 MRVR 2 300 MRVR 2 300 MRVR 2 300 MRVR 2 300 M
RNP (LNAV)MDA (H)
520 FT (483 FT)
RVR 1 500 M
MDA (H)
520 FT (483 FT)
RVR 1 500 M
MDA (H)
520 FT (483 FT)
RVR 1 500 M
MDA (H)
520 FT (483 FT)
RVR 1 500 M
MDA (H)
520 FT (483 FT)
RVR 1 500 M
ALS outRVR 2 300 MRVR 2 300 MRVR 2 300 MRVR 2 300 MRVR 2 300 M
VOR/DMEMDA (H)
540 FT (503 FT)
RVR 1 600 M
MDA (H)
540 FT (503 FT)
RVR 1 600 M
MDA (H)
540 FT (503 FT)
RVR 1 600 M
MDA (H)
540 FT (503 FT)
RVR 1 600 M
MDA (H)
540 FT (503 FT)
RVR 1 600 M
ALS outRVR 2 400 MRVR 2 400 MRVR 2 400 MRVR 2 400 MRVR 2 400 M
RWY 33
CAT 3B ILSApprovedApprovedApprovedApprovedApproved
CAT 3A ILSRA 50 FT
RVR 200 M
RA 50 FT
RVR 200 M
RA 50 FT
RVR 200 M
RA 50 FT
RVR 200 M
RA 50 FT
RVR 200 M
CAT 2 ILSDA (H)
147 FT (120 FT)
RA 126 FT
DA (H)
160 FT (133 FT)
RA 139 M
DA (H)
171 FT (144 FT)
RA 150 M
DA (H)
185 FT (158 FT)
RA 163 M
DA (H)
245 FT (218 FT)
NA
ALS outRVR 300 MRVR 400 MRVR 450 MRVR 450 MRVR 450 M
ILSDA (H)
233 FT (206 FT)
RVR 550 M
DA (H)
243 FT (216 FT)
RVR 550 M
DA (H)
255 FT (228 FT)
RVR 550 M
DA (H)
266 FT (239 FT)
RVR 550 M
DA (H)
314 FT (287 FT)
RVR 650 M
ALS outRVR 1 200 MRVR 1 200 MRVR 1 200 MRVR 1 200 MRVR 1 400 M
LOCMDA (H)
420 FT (393 FT)
RVR 1 100 M
MDA (H)
420 FT (393 FT)
RVR 1 100 M
MDA (H)
420 FT (393 FT)
RVR 1 100 M
MDA (H)
420 FT (393 FT)
RVR 1 100 M
MDA (H)
420 FT (393 FT)
RVR 1 100 M
ALS outRVR 1 800 MRVR 1 800 MRVR 1 800 MRVR 1 800 MRVR 1 800 M
RNP (LNAV/VNAV)DA (H)
390 FT (363 FT)
RVR 1 000 M
DA (H)
390 FT (363 FT)
RVR 1 000 M
DA (H)
390 FT (363 FT)
RVR 1 000 M
DA (H)
390 FT (363 FT)
RVR 1 000 M
DA (H)
390 FT (363 FT)
RVR 1 000 M
ALS outRVR 1 700 MRVR 1 700 MRVR 1 700 MRVR 1 700 MRVR 1 700 M
RNP (LNAV)MDA (H)
420 FT (393 FT)
RVR 1 100 M
MDA (H)
420 FT (393 FT)
RVR 1 100 M
MDA (H)
420 FT (393 FT)
RVR 1 100 M
MDA (H)
420 FT (393 FT)
RVR 1 100 M
MDA (H)
420 FT (393 FT)
RVR 1 100 M
ALS outRVR 1 800 MRVR 1 800 MRVR 1 800 MRVR 1 800 MRVR 1 800 M
VOR/DMEMDA (H)
420 FT (393 FT)
RVR 1 100 M
MDA (H)
420 FT (393 FT)
RVR 1 100 M
MDA (H)
420 FT (393 FT)
RVR 1 100 M
MDA (H)
420 FT (393 FT)
RVR 1 100 M
MDA (H)
420 FT (393 FT)
RVR 1 100 M
ALS outRVR 1 800 MRVR 1 800 MRVR 1 800 MRVR 1 800 MRVR 1 800 M
VORMDA (H)
470 FT (443 FT)
RVR 1 400 M
MDA (H)
470 FT (443 FT)
RVR 1 400 M
MDA (H)
470 FT (443 FT)
RVR 1 400 M
MDA (H)
470 FT (443 FT)
RVR 1 400 M
MDA (H)
470 FT (443 FT)
RVR 1 400 M
ALS outRVR 2 100 MRVR 2 100 MRVR 2 100 MRVR 2 100 MRVR 2 100 M
NDBMDA (H)
550 FT (523 FT)
RVR 1 700 M
MDA (H)
550 FT (523 FT)
RVR 1 700 M
MDA (H)
550 FT (523 FT)
RVR 1 700 M
MDA (H)
550 FT (523 FT)
RVR 1 700 M
MDA (H)
550 FT (523 FT)
RVR 1 700 M
ALS outRVR 2 400 MRVR 2 400 MRVR 2 400 MRVR 2 400 MRVR 2 400 M
NDB 4.0% Missed Approach Climb GradientMDA (H)
420 FT (393 FT)
RVR 1 100 M
MDA (H)
420 FT (393 FT)
RVR 1 100 M
MDA (H)
420 FT (393 FT)
RVR 1 100 M
MDA (H)
420 FT (393 FT)
RVR 1 100 M
MDA (H)
420 FT (393 FT)
RVR 1 100 M
ALS outRVR 1 800 MRVR 1 800 MRVR 1 800 MRVR 1 800 MRVR 1 800 M
Circle to land100 KT135 KT180 KT205 KT240 KT
All ProceduresMDA (H)
610 FT (573 FT)
VIS 1 500 M
MDA (H)
620 FT (583 FT)
VIS 1 600 M
MDA (H)
1 240 FT (1 203 FT)
VIS 2 400 M
MDA (H)
1 240 FT (1 203 FT)
VIS 3 600 M
MDA (H)
1 540 FT (1 503 FT)
VIS 3 600 M
3.2 Take-off operating minima
Take-off RVR / Visibility for RWY 15 & 33
LVP must be in force
Runway edge and centre line lighting and multiple RVR informationRunway edge and centre line lightingRunway edge lighting and/or centre line marking (DAY only)Runway edge lighting and/or centre line marking (DAY only)NIL (DAY only)
A150 M200 M250 M-500 M
B
C
D200 M250 M300 M

Note: The operational minima published for DOHA INTERNATIONAL airport have been established in accordance with Appendix 1 (New) to QCAR - OPS 1.430.

4 Procedures to be observed by VFR aircraft in and out of Doha Control Zone
4.1 Aircraft operating under Visual Flight Rules (VFR) to report control zone boundary outbound at nearest visual reporting point to their desired tracks.
4.2 Visual reporting points

1.Reporting points for Civil Rotary Wing aircraft:

BANANA EAST (BNE)251850.49N 0514140.25E
BAY-POINT (BAY)251910.92N 0513657.70E
CABLE (CAB)252922.58N 0512709.46E
CENTRAL ROUNDABOUT (CRA)251531.20N 0513503.57E
HAB (HAB)252554.00N, 0514112.60E
LANDMARK (LMK)251954.21N 0512751.49E
MARRIOT (MRT)251800.58N 0513357.07E
NORTH ROUNDABOUT (NRA)251623.55N 0513438.06E
OUTER CHANNEL MARKER (OCM)251602.64N 0514418.28E
ROMEO (RME)251619.73N 0513049.22E
SARAH (SRH)252653.28N 0512435.68E
SEA-POINT (SEA)251526.40N 0513836.00E
SOUTH ROUNDABOUT (SRA)251423.05N 0513528.92E
SPOON (SPN)253319.71N 0513801.01E
X-RAY (XRY)251344.29N 0513120.70E
ZULU (ZUL)251255.01N 0512700.43E

2.Reporting points for Civil Fixed Wing aircraft:

ALPHA (ALF)252344.84N 0512204.72E
ASPIRE (ASP)251544.78N 0512641.36E
BRAVO (BVO)253201.18N 0511823.86E
ROMEO (RME)251619.73N 0513049.22E
SHAMAL (SML)253716.55N 0512405.05E
SOFIA (SOF)252425.00N 0512254.00E
SOUTH POINT (SPT)245917.99N 0513111.90E
X-RAY (XRY)251344.29N 0513120.70E
ZULU (ZUL)251255.01N 0512700.43E
4.3 Aircraft returning from general flying training areas shall request joining instructions prior to leaving these areas.
4.4 All aircraft must maintain listening watch on 118.900 MHz whilst operating within the control zone with an operations normal call every 30 minutes
4.5 Standard VFR departure and arrival routes for Rotary Wing Aircraft.

1.Aircraft departing from Doha International Airport

RunwayNameDescription

Note: From BNE, the following outbound procedures will apply:

  1. Aircraft operating on DOH VOR R360 to R019 will route via HAB and then on their requested radials.
  2. Aircraft operating east of DOH VOR R019 will route as requested.
  3. Aircraft routing to eastern oil fields will route as requested.
a)RWY 15BAY-POINT (BAY) DEPARTUREAfter departure RWY 15, turn left towards CENTRAL ROUNDABOUT (CRA) and climb to 1000 FT to cross CRA at 1000 FT, contact Hamad Tower West (TW) once clear of runway. From CRA route to MARRIOT (MRT) and hold, whilst awaiting clearance from ATC. When cleared, cross north of threshold RWY 16R/RWY 16L and route towards BAY-POINT (BAY) and BANANA EAST (BNE). (See note below)

Note: The aircraft should not, in normal circumstances, leave MRT until TW has effected coordination with Tower East (TE) and all Traffic Information (TI) passed i.e. RWY 16R/RWY 16L traffic, helicopter arrivals etc.

b)RWY 33SEA-POINT (SEA) DEPARTUREAfter departure RWY 33 turn right towards CENTRAL ROUNDABOUT (CRA) and climb to 1000 FT to cross CRA at 1000 FT, contact Hamad Tower West (TW) once clear of runway. From CRA route to SOUTH ROUNDABOUT (SRA) and hold, whilst awaiting clearance from ATC. When cleared, cross south of threshold RWY 34L/RWY 34R and route towards SEA-POINT (SEA) and BANANA EAST (BNE). (See note below).

Note: The aircraft should not, in normal circumstances, leave SRA until TW has effected coordination with Tower East (TE) and all Traffic Information (TI) passed i.e. RWY 34L/RWY 34R traffic, helicopter arrivals etc.

2.Aircraft inbound to Doha International Airport

Aircraft inbound from the North and the East
All aircraft inbound to Doha International Airport shall contact Hamad Tower East (TE) at least 10 minutes before entering the CTR. Once cleared by ATC, the aircraft will route as below and arrange to cross the CTR boundary at 500 FT.
  1. Aircraft inbound on radials West of DOH VOR R019 will route direct to HAB and then to BNE to hold and wait for clearance to proceed.
  2. Aircraft inbound on radials East of DOH VOR R019 will route direct to BNE to hold and wait for clearance to proceed.
  3. Aircraft inbound from the East will route direct to BNE to hold and wait for clearance to proceed.
  4. The holding pattern will be towards the East of BNE to remain clear of Banana Island.
  5. Once clearance is obtained, the aircraft will follow the standard arrival route as below depending on runway-in-use.
RunwayNameDescription
a)RWY 15BAY-POINT (BAY) ARRIVALWhen cleared to leave BANANA-EAST (BNE), aircraft will be tactically routed to hold at BAY-POINT (BAY). Aircraft should not, in normal circumstances, leave the BAY hold until TE has effected coordination with TW and all traffic information passed i.e. RWY 16L/RWY 16R traffic, helicopter departures, etc. Doha Tower should also be informed. From BAY, aircraft should route North of threshold RWY 16L/RWY 16R towards MRT and join long final RWY 15. Once clear of the Eastern RWY, aircraft should be passed traffic information as necessary and transferred to Doha Tower (or TW if they request it during coordination). Helicopter may be requested to hold at MRT if, required due to traffic on final RWY 15.
b)RWY 33SEA-POINT (SEA) ARRIVALWhen cleared to leave BANANA-EAST (BNE), aircraft will be tactically routed to hold at SEA. Aircraft should not, in normal circumstances, leave the SEA-POINT (SEA) hold until TE has effected coordination with TW and all traffic information passed i.e. RWY 34R/RWY 34L traffic, helicopter departures, etc. Doha Tower should also be informed. From SEA, aircraft should route south of threshold RWY 34R/RWY 34L towards SRA. Once clear of the Eastern RWY, aircraft should be passed traffic information as necessary and transferred to Doha Tower (or TW if they request it during coordination). Helicopter may be requested to hold at SRA if required due to traffic on final RWY 33.

3.Special VFR operations

Departing Flights
RunwayNameDescription
a)RWY 15HELI 15 DepartureAfter departure RWY 15, turn right to X-RAY (XRY) and climb to 1500 FT. From XRY, route direct LANDMARK (LMK), then SARAH (SRH), CABLE (CAB) and SPOON (SPN). After SPN, aircraft will be routed as requested.
b)RWY 33HELI 33 DepartureAfter departure RWY 33 turn left route ROMEO (RME) and climb to 1500 FT. From RME, route direct LANDMARK (LMK), then SARAH (SRH), CABLE (CAB) and SPOON (SPN). After SPN, aircraft will be routed as requested.
Arriving flights
RunwayNameDescription

Note 1 Aircraft to contact Doha Tower 10 minutes before entering the CTR. Doha Tower will obtain SVFR Clearance from Doha Director and then transfer aircraft to Director when instructed. Aircraft will route inbound to SPOON (SPN) and then follow procedures as above:

Note 2 The weather minima for Gulf Helicopters, has been decreased from 5000 M to 3500 M. All other traffic has to follow standard VMC minima.

a)RWY 15HELI 15 ARRIVALAircraft will route direct SPOON (SPN) to cross SPN maintaining 1000 FT and then route CABLE (CAB), SARAH (SRH), LANDMARK (LMK) and hold overhead ROMEO (RME) if required. From RME, route as cleared by ATC for right base RWY 15.
b)RWY 33HELI 33 ARRIVALAircraft will route direct SPOON (SPN) to cross SPN maintaining 1000 FT and then route CABLE (CAB), SARAH (SRH), LANDMARK (LMK) then direct X-RAY (XRY) hold overhead XRY if required. From XRY, route as cleared by ATC for landing RWY 33.

4.Radio Communication Failure during VMC

Aircraft east of a line drawn between MRT and SRA.
Aircraft outside the CTR will route direct to BANANA EAST (BNE) and hold for 3 minutes. There after the aircraft will route either to BAY or SEA depending on runway-in-use and execute 2 holds and visually check the landing area and the Tower for visual signals. Aircraft will then proceed and land on the RWY 34R/16L close to TWY A6, or if runway block land on TWY B.
Aircraft west of a line drawn between MRT and SRA.
Remain west of this line, hold on western side of RWY 15/33 and observe tower for visual signals. After 3 minutes proceed to land on runway-in-use in Doha.
4.6 Standard VFR departure and arrival routes for Civil Fixed Wing Aircraft

1.Aircraft departing from Doha to the North

RunwayNameDescription
a)RWY 33ASPIRE 33 Visual DepartureClimb straight ahead to 700 FT, turn to the West and remain clear of prohibited-area OTP45; route direct to ASPIRE (ASP); then direct to point SOFIA (SOF); then direct to point SHAMAL (SML). Climb as instructed by ATC to 1500 FT.
b)RWY 15ASPIRE 15 Visual DepartureClimb straight ahead to 700 FT turn to the West before the upwind end of RWY 15; route direct to point X-RAY (XRY); direct to ASPIRE (ASP); direct to point SOFIA (SOF); then direct to point SHAMAL (SML). Climb as instructed by ATC to 1500 FT.

2.Aircraft inbound to Doha from the North

RunwayNameDescription
a)RWY 33ASPIRE 33 Visual ArrivalFrom point SHAMAL (SML), route direct to SOFIA (SOF) traffic must be 2000 FT at SOF then route direct to ASP and hold over ASP as required by ATC. From ASP, route direct to ZULU (ZUL) if requested, hold at ZUL at 2000 FT. From ZUL, route direct to XRY and descend as instructed by ATC. Hold overhead XRY at 1500 FT when instructed or when cleared by ATC route for final approach RWY 33.
b)RWY 15ASPIRE 15 Visual ArrivalFrom point SHAMAL (SML), route direct to SOFIA (SOF). Traffic must be 2000 FT by SOF, then route direct to ASP and hold over ASP as required by ATC. When cleared by ATC proceed to ROMEO (RME) at 2000 FT. 1500 FT may be used subject to other VFR traffic; however at this altitude only 1 hold may be carried out. If more holds are required, the aircraft should maintain 2000 FT and then proceed to right hand as instructed by ATC. The holding will be between ROMEO (RME) and MidMac roundabout.

Notes:
i) Aircraft to contact Doha TWR at SHAMAL (SML) for inbound clearance.

Remarks:

  1. If more than two aircraft request to return to Doha from General Flying Area, and they will be required to hold overhead ZULU (ZUL) for RWY 33 or ROMEO (RME) for RWY 15, the second and succeeding aircraft will be advised to remain clear of the CTR and standby for joining instruction. Only one aircraft can be hold at any one time over ZUL and RME respectively. No holding allowed overhead ASP.
  2. VFR traffic arriving on the ASPIRE (ASP) arrival are independent of Hamad IFR traffic. If a VFR arrival carries out a go-around, Doha TWR must inform Hamad TWR W if the traffic does not turn west before the upwind end of the runway. Hamad TWR W must pass any relevant traffic information to Doha TWR and pass traffic information to both Hamad departing and arriving traffic.
  3. Aircraft proceeding to right base RWY 15 from ROMEO (RME) will maintain 1500 FT until established on final approach to avoid infringing the restricted-area over the Amiri Diwan. After establishing the approach,subsequent touchdown may be expected approximately abeam intersection Q, with roll-out and vacation at intersection B/B1.
  4. Advanced students or instructors may be able to accomplish touchdown and roll-out earlier than the above, but no attempt should be made to request this from the pilot.
5 Radio failure procedures - VFR aircraft
5.1 Clearance received:
In the event of a radio failure after obtaining a clearance continue as per ATC clearance. On entry to aerodrome traffic pattern, join at southern boundary and proceed along north / south TWY D at 700 FT executing wing-waggling past the control tower and continue in a left-hand orbit until visual instructions received from tower.
5.2 No clearance received:
Proceed inbound via nearest reporting point to rejoin south of aerodrome and execute procedure as detailed in 5.1 (above). Aircraft inbound from ALPHA to route west of the city prior to rejoin as detailed in 5.1 (above)
5.3 Aircraft operations to Halul Island or off-shore rigs will not be subjected to these procedures.
6 Runway utilisation

To ensure the maximum runway utilisation, pilots are expected to comply with the following operational procedures.

6.1 Departures

When given clearance to enter the runway and take off, the manoeuvre shall commence without delay. If pre-take off checks have not been completed, ATC must be advised and the delay taken up at the holding point.

6.2 Arrivals

Arriving flights shall, on completion of the landing roll, be excepted to vacate expeditiously at the first available taxiway exit, or as instructed by ATC. The aircraft should not be slowed significantly below normal taxi speed, or stopped, on the exit taxiway unless approved by ATC.

7 Ground movement

Pilots should adhere to centreline guidance on taxiways at all times.

7.1 Departures

Departing aircraft are advised to switch - on their transponder before requesting startup clearance from ATC. If an allocated code has not been assigned under DCL (Departure Clearance) procedures, conspicuity code A2000 should be selected.

7.2 Arrivals

Landing aircraft to maintain their transponder switched - on until they park on the stand.

8 Arrival Aircraft Contact Procedure

In the absence of instructions by Doha APP to transfer frequency, landing aircraft are advised to contact Doha Tower – Frequency 118.900 MHz at 5 NM final.

OTBD AD 2.23 ADDITIONAL INFORMATION

1 Visual docking guidance system:
1.1 General safety measures:
1.1.1 The VDGS has a built-in error detection program to inform the aircraft pilot of impending dangers during the docking procedure. If the pilot is unsure of the information being shown on the VDGS display unit, he / she must immediately stop the aircraft and obtain further information for clearance.
1.1.2 The pilot shall not enter the stand area, unless the docking system first is showing the vertical running arrows. The pilot must not proceed beyond the bridge, unless these arrows have been superseded by the closing rate bar.
1.1.3 The pilot shall not enter the stand area, unless the aircraft type displayed is equal to the approaching aircraft. The correctness of other information, such as ‘DOOR 2‘, shall also be checked.
1.1.4 When using the docking system, pilots are advised to taxi into the aircraft stand at minimum speed. The system will display "SLOW DOWN" to inform the pilot if the aircraft‘s taxiing speed is too fast. (See ITEM 1.2.6 of Docking Procedures)
1.1.5 To avoid overshooting, pilots are advised to approach the stop position slowly and observe the closing rate information displayed. Pilots should stop the aircraft immediately when seeing the "STOP" display or when given the "STOP" sign by the aircraft marshaller.
1.1.6 THE SBU MESSAGE - The message STOP SBU means that docking has been interrupted and has to be resumed only by manual guidance. Do not try to resume docking without manual guidance.
1.2 Stand docking procedures:
1.2.1 START-OF-DOCKING

The system is started by pressing one of the aircraft type buttons on the Operator Panel. When the button has been pressed, WAIT will be displayed.


1.2.2 CAPTURE
The floating arrows indicate that the system is activated and in capture mode, searching for an approaching aircraft. It shall be checked that the correct aircraft type is displayed. The lead-in line shall be followed.

THE PILOT MUST NOT PROCEED BEYOND THE BRIDGE, UNLESS THE ARROWS HAVE BEEN SUPERSEDED BY THE CLOSING RATE BAR.

1.2.3 TRACKING
When the aircraft has been caught by the laser, the floating arrow is replaced by the yellow centre line indicator.
A flashing red arrow indicates the direction to turn. The vertical yellow arrow shows position in relation to the centre line. This indicator gives correct position and azimuth guidance.

1.2.4 CLOSING RATE
Display of digital countdown will start when the aircraft is 20 meters from stop position.
When the aircraft is less than 12 meters from the stop position, the closing rate is indicated by turning off one row of the centre line symbol per half a metre of the distance, covered by the aircraft toward the stop position of the stand. The picture illustrates the aircraft ten metres from stop position, slightly left of the centre line. The red arrow indicates the direction to steer.

1.2.5 ALIGNED TO CENTRE
The aircraft is eight meters from the stop position. The absence of any direction arrow indicates an aircraft on the centre line.

1.2.6 SLOW DOWN
If the aircraft is approaching faster than the accepted speed, the system will show SLOW DOWN as a warning to the pilot.

1.2.7 AZIMUTH GUIDANCE
The aircraft is four meters from the stop-position.
The yellow arrow indicates an aircraft to the right of the centre line, and the red flashing arrow indicates the direction to turn.

1.2.8 STOP POSITION REACHED
When the correct stop-position is reached, the display will show STOP and red lights will be lit.

1.2.9 DOCKING COMPLETED
When the aircraft has parked, OK will be displayed.

1.2.10 OVERSHOOT
If the aircraft has overshot the stop - position, TOO FAR will be displayed.

1.2.11 STOP SHORT
If the aircraft is found standing still but has not reached the intended stop position, the message STOP OK will be shown after a while.

1.2.12 WAIT
If some object is blocking the view toward the approaching aircraft or the detected aircraft is lost during docking close to STOP, the display will show WAIT.
The docking will continue as soon as the blocking object has disappeared or the system detects the aircraft again.

THE PILOT MUST NOT PROCEED BEYOND THE BRIDGE, UNLESS THE "WAIT" MESSAGE HAS BEEN SUPERSEDED BY THE CLOSING RATE BAR.

1.2.13 SLOW
This display can be shown for two reasons:
  1. BAD WEATHER CONDITION
    During heavy sandstorm, fog or rain, the visibility for the docking system can be reduced.
    When the system is activated and in capture mode, the display will disable the floating arrows and display SLOW and the Aircraft Type.
    As soon as the system detects the approaching aircraft, the vertical closing-rate bar will appear.
    If the system has been configured in this mode to make a shortened ID verification (check of engine position excluded), the Aircraft symbol will blink to give attention.
  2. AIRCRAFT LOST DURING DOCKING
    If the aircraft is lost during docking at a distance greater than STOP plus the distance between nose and engine, the display will show SLOW.

As soon as the system detects the approaching aircraft, the vertical closing-rate bar will appear.

THE PILOT MUST NOT PROCEED BEYOND THE BRIDGE; UNLESS THE CLOSING-RATE BAR IS SHOWN:


1.2.14 AIRCRAFT VERIFICATION FAILURE
During entry into the Stand, the aircraft geometry is being checked. If, for any reason, aircraft verification is not made 12 meters before the stop-position, the display will first show WAIT and make a second verification check. If this fails STOP and ID FAIL will be displayed. The text will be alternating on the upper two rows of the display.

THE PILOT MUST NOT PROCEED BEYOND THE BRIDGE WITHOUT MANUAL GUIDANCE, UNLESS THE WAIT MESSAGE HAS BEEN SUPERSEDED BY THE CLOSING RATE BAR.

1.2.15 GATE BLOCKED
If an object is found blocking the view from the DGS to the planned stop position for the aircraft, the docking procedure will be halted with a WAIT and GATE BLOCK message. The docking procedure will resume as soon as the blocking object has been removed.

THE PILOT MUST NOT PROCEED BEYOND THE BRIDGE WITHOUT MANUAL GUIDANCE, UNLESS THE WAIT MESSAGE HAS BEEN SUPERSEDED BY THE CLOSING RATE BAR.

1.2.16 VIEW BLOCKED
If the view towards the approaching aircraft is hindered, for instance by dirt on the window, the DGS will report a View blocked condition. Once the system is able to see the aircraft through the dirt, the message will be replaced with a closing rate display.

THE PILOT MUST NOT PROCEED BEYOND THE BRIDGE WITHOUT MANUAL GUIDANCE, UNLESS THE WAIT MESSAGE HAS BEEN SUPERSEDED BY THE CLOSING RATE BAR.

1.2.17 SBU-STOP
Any unrecoverable error during the docking procedure will generate an SBU (safety back up) condition. The display will show red stop-bar and the text STOP SBU.

A MANUAL BACKUP PROCEDURE WILL BE USED FOR DOCKING GUIDANCE.

1.2.18 TOO FAST
If the aircraft approaches with a speed higher than the docking system can handle, the message STOP (with red squares) and TOO FAST will be displayed.

THE DOCKING SYSTEM WILL BE RE-STARTED OR THE DOCKING PROCEDURE COMPLETED BY MANUAL GUIDANCE.

1.2.19 EMERGENCY STOP
Pilots should stop the aircraft immediately when STOP is displayed.

1.2.20 CHOCKS ON
CHOCKS ON will be displayed, when the ground staff has put the chocks in front of the nose wheel and pressed the "Chocks On" button on the Operator Panel.

1.2.21 ERROR
If a system error occurs, an error message is displayed with an error code. The code is used for maintenance purposes and is explained elsewhere.

1.2.22 SYSTEM BREAKDOWN
In case of a severe system failure, the display will go black except for a red stop indicator. A manual backup procedure will be used for docking guidance

1.2.23 POWER FAILURE
In case of a power failure, the display will be completely black. A manual backup procedure will be used for docking guidance.

OTBD AD 2.24 CHARTS RELATED TO AN AERODROME

AERODROME GROUND MOVEMENT CHART - ICAO
PDF
AIRCRAFT PARKING / DOCKING CHART - ICAO MAIN & WESTERN APRONS
PDF
PDF
AIRCRAFT PARKING / DOCKING CHART - ICAO EASTERN APRONS
PDF
PDF
AERODROME LIGHTING CHART
PDF
AERODROME OBSTACLE CHART - ICAO RWY 15/33 TYPE A
PDF
AERODROME OBSTACLE CHART - ICAO RWY 33 OFFSET DEP TYPE A
PDF
PRECISION APPROACH TERRAIN CHART - ICAO RWY 33
PDF
SID - ICAO RWY 15 BATHA 1S RNP
PDF
SID - ICAO RWY 15 ALSEM 1S / BUNDU 1S / NAMLA 1S RNP
PDF
SID - ICAO RWY 15 ALVEN 1S / PATOM 1S RNP
PDF
SID - ICAO RWY 15 SALWA 1S RNP
PDF
SID - ICAO RWY 15 NOPLI 1S
PDF
SID - ICAO RWY 33 BATHA 1N RNP
PDF
SID - ICAO RWY 33 ALSEM 1N / BUNDU 1N / NAMLA 1N RNP
PDF
SID - ICAO RWY 33 ALVEN 1N / PATOM 1N RNP
PDF
SID - ICAO RWY 33 SALWA 1N RNP
PDF
SID - ICAO RWY 33 DERNO 1N
PDF
STAR - ICAO RWY 15 AFNAN 1S / BAYAN 1S / GINTO 1S RNP
PDF
STAR - ICAO RWY 33 AFNAN 1N / BAYAN 1N / GINTO 1N RNP
PDF
IAC - ICAO RWY 15 ILS
PDF
IAC - ICAO RWY 15 VOR
PDF
IAC - ICAO RWY 15 RNP
PDF
IAC - ICAO RWY 33 ILS
PDF
IAC - ICAO RWY 33 VOR Y
PDF
IAC - ICAO RWY 33 VOR Z
PDF
IAC - ICAO RWY 33 RNP
PDF
IAC - ICAO NDB RWY 33
PDF
VISUAL APPROACH CHART - ICAO
PDF
HELICOPTER ROUTE CHART
PDF
BIRD CONCENTRATIONS
PDF
